Cedar Garden Rooms, Hampshire. Mr & Mrs P contacted Garden Retreat and were interested in our Arched Roof Contemporary Garden Office to be installed in the back garden. Mr P required an office away from the home environment where everything can be organised and there is no disruption from within the home.

Mr & Mrs P also required a concrete base to place the building on which Garden Retreat provided as part of the package.

Before Photos



Curved Roof Cedar Clad Contemporary Garden Office situated to the right at the bottom of the garden.

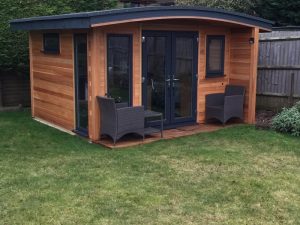

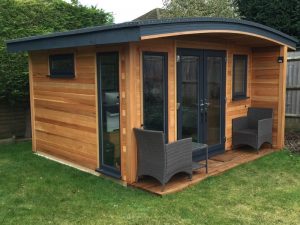

Completed Photos




The Arched Roof Contemporary Garden Office is constructed using an external cedar clad and bitumen paper to ensure any damp is kept out of the building.  The walls are constructed using a 75mm x 38mm timber frame, 50mm polystyrene and a 12mm grooved brushed ply to line the inner walls. The total thickness of the walls is 100mm which lends itself to all year round use.  The floor is manufactured using heavy duty bearers, 75mm Celotex and a 12mm ply floor which can either be carpeted or a vinyl floor can be installed for a hard wearing and an easily clean option. We can install a laminated floor if required, please contact us for further details.

The roof is insulated and comes with an inner 12mm ply, heavy duty polyester felt roof 50mm polystyrene insulation, 12mm ply and 6 internal spot lights.  Also within the electrics pack there is consumer unit, 3 double sockets and a switch. We also install sockets with built in USB charging points which is very useful and this building can also have external spots to light up the porch area as an additional option.

This particular model was supplied with one set of 1200mm wide Anthracite Grey uPVC multi-lock French doors and two 600mm Anthracite Grey uPVC sidelights which provides a modern look and lots of light.  In addition, it has a vent window to the left hand elevation (900mm x 300mm) and a casement window to the front (900mm x 600mm) for ventilation if you do not want to open the French doors.  The building is designed to be modular so during the ordering process you have the opportunity to choose where you want the windows and doors to be. Finally, it has a external side wall and a 700mm decked area with matching overhang and colour coded barge boards around the roof.

If you are interested in this design or would like something similar please do not hesitate to contact us for a quotation?



“Garden Retreat installed a home office for us (including laying of the concrete base). The project was undertaken at the agreed time and there were no hidden or additional costs.

We are very happy with the end result; an excellent office space that is comfortable to work in and looks good.

Garden Retreat were highly professional and helpful. A pleasure to deal with.”  Verified Review By Houzz

Mr & Mrs P – South Wonston, Hampshire.
