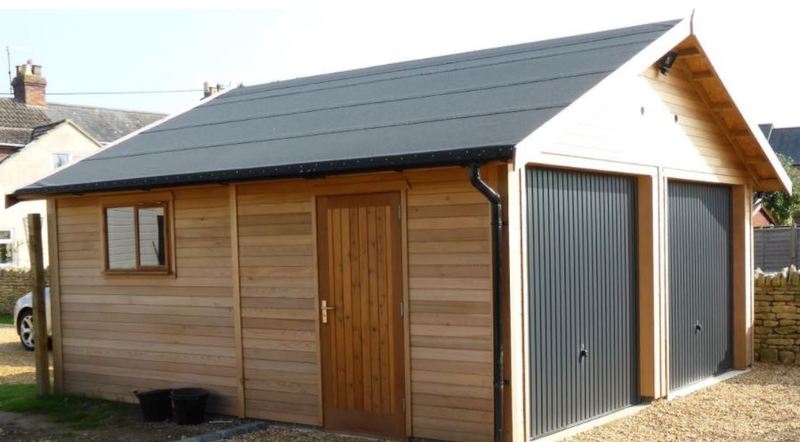

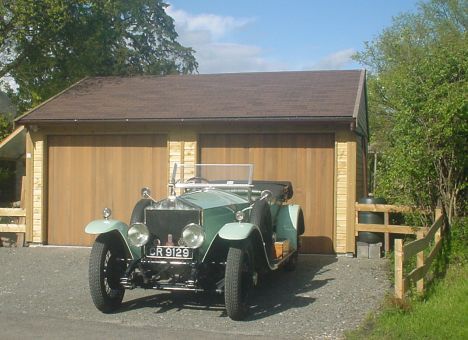

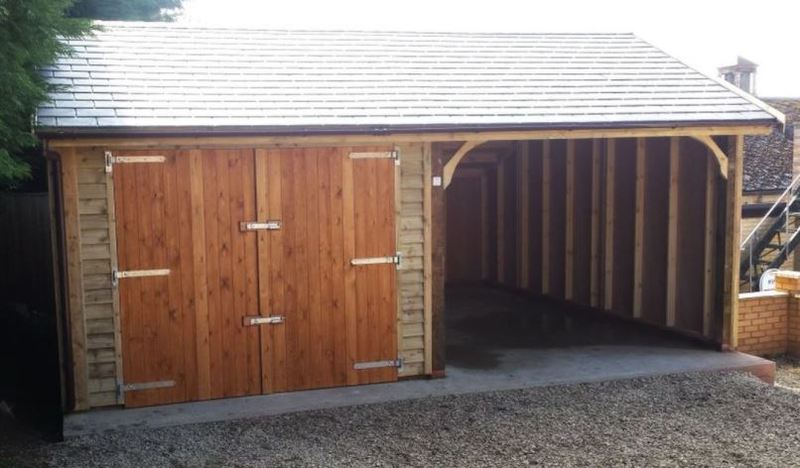

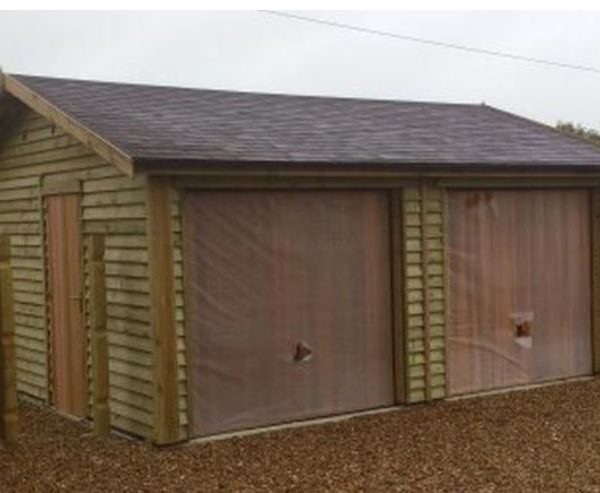

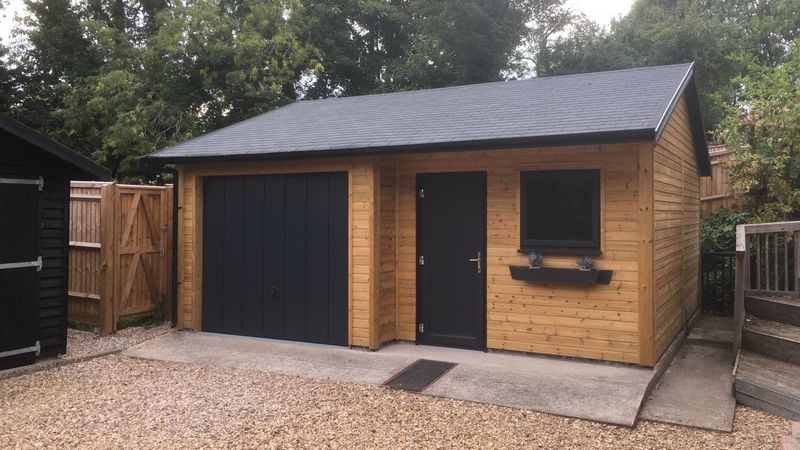

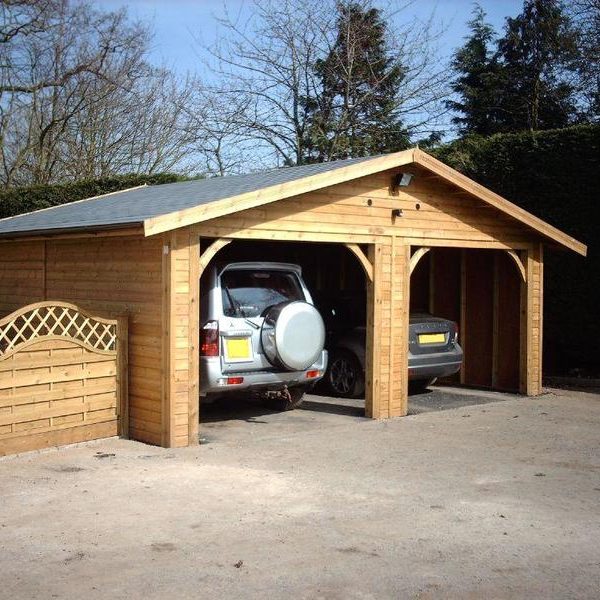

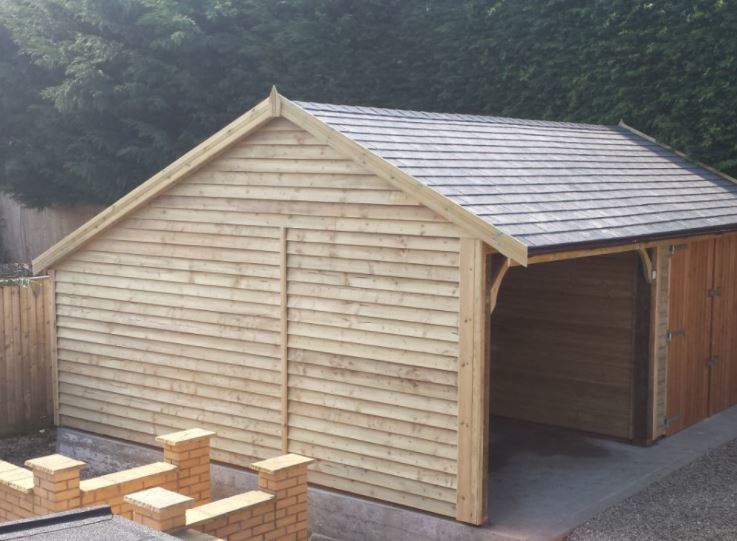

The Winchester Timber Framed Double Garage Range
  • Tanalised 16mm Nom x 125mm cladding – No Maintenance required
  • Selection of other cladding, feather edge or cedar available
  • 3-layer wall system with built in vapour barrier onto 100mm x 40mm framing
  • Includes choice of up and over or fully framed barn doors
  • Large choice of doors and window options
  • Selection of various roof options available.
  • Black or brown guttering supplied and installed as standard
  • Vents in gable ends for ventilation
  • We have fully trained staff to install your timber framed garage
  • Permitted Development (subject to your local council requirements)

The Winchester Timber Framed Double Garages start at 18′ (5.5m) wide and go up to 26′ (8.0m) wide with a maximum depth of 23′ (7.0m) deep, They feature either two sets of fully framed double doors or up and over doors 8′ (2.4m) wide in a range of colours, heavy duty green mineral felt roof and guttering. Personnel doors and windows are available, along with different roof coverings. Please see ‘Available Optional Extras’ below.

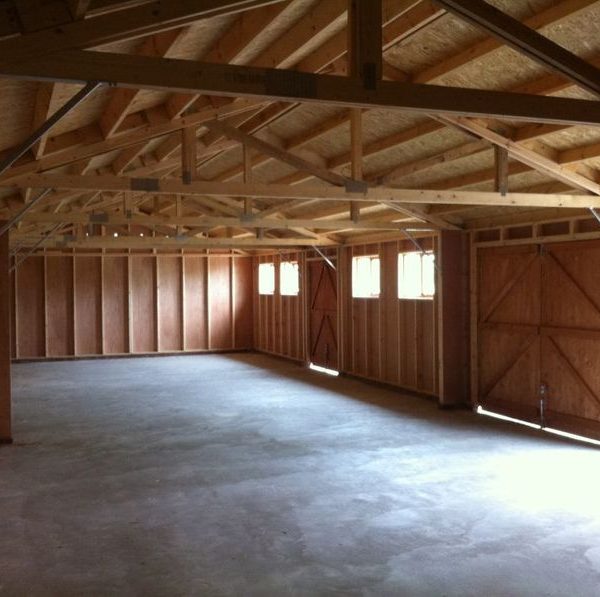

The structure of the building is based on 100mm x 38mm Planed (Eased Edged) framing which provides a significant level of strength and rigidity.

We use selected timber with a very high grade, which is subject to less twisting and warping, to provide a sound base to start from. Higher grade timber is slower grown to provide more strength.

FSC Timber

FSC is from certified Forest Stewardship Council forests, meaning that the timber is sustainable (usually from Scandinavian Forests).

Tanalised Shiplap Cladding (125mm x 16mm Nom)

The majority of our garages are constructed with ship-lap cladding. The cladding itself appears similar to tongue and groove, except the internal part of the groove is missing from the profile. The basis behind shiplap is it allows a certain amount of natural movement to take place throughout the change in seasons. In addition to this, we have developed our own profile of shiplap with a large overlap and tongue, which offers more protection to the building, thus increasing the lifespan. The cladding itself is tanalised (E-tanalith) to provide a rot resistant finish for over 25 years.

One advantage of shiplap is that it has a planed finish, and it also provides a near flat finish. This helps when fitting items such as hinges and door furniture.

By tanalising the timber with E-Tanalith, we are protecting against rot & decay for 25+ years.

Plywood & Paper Lining

We paper line the buildings with bitumen vapour barrier, to ensure the rainwater does soak into the building, however we found the paper crinkles during the summer once it is dry. We therefore provide an additional 4mm skin of plywood to line the outside of the framing which hides the vapor barrier and improves the overall internal appearance, the ply also provides additional rigidity and insulation, which is ideal for classic cars & bikes.

Windows

Should you wish to have windows in your garage, we can offer you the following options.

  • uPVC D/G Casement Window, side opening (610mm wide x 915mm high) in Oak, Black, Grey or Green
  • uPVC D/G Double Casement Window, both opening (610mm wide x 915mm high) in Oak, Black, Grey or Green
  • uPVC D/G Traditional Window, both opening (915mm wide x 1050mm high) in Oak, Black, Grey or Green
  • uPVC D/G Picture Window, top opening (900mm wide x 900mm high) in Oak, Black, Grey or Green
  • uPVC D/G Small Garage Window, side opening (985mm wide x 670mm high) in Oak, Black, Grey or Green
  • uPVC D/G Large Garage Window, top vent (1200mm wide x 900mm high) in Oak, Black, Grey or Green
  • There is an option of either black, brass, anthracite grey or chrome window and door furniture and the windows come with trickle vents and window locks.

We can provide other window sizes if required, please contact us for further details

Doors

The Winchester Timber Framed Single Garages are supplied with two versions of garage door as follows:

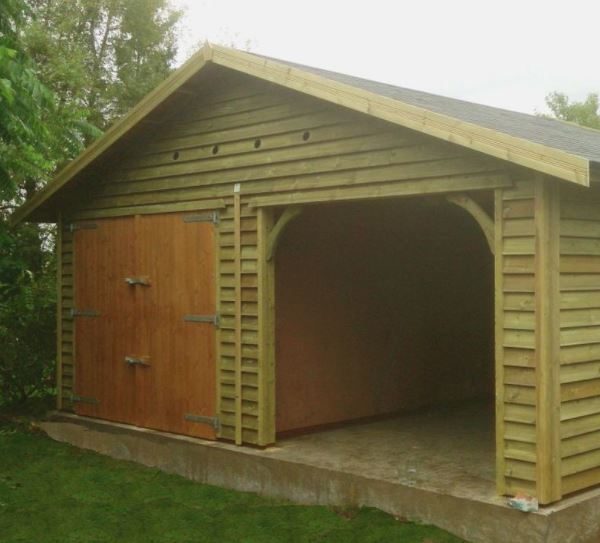

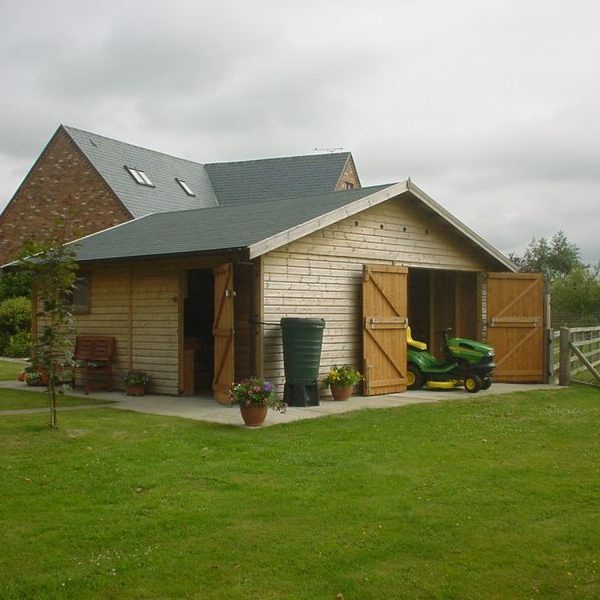

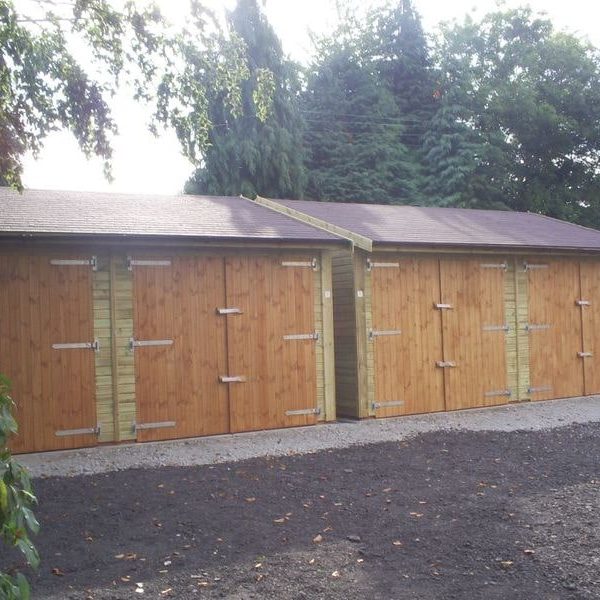

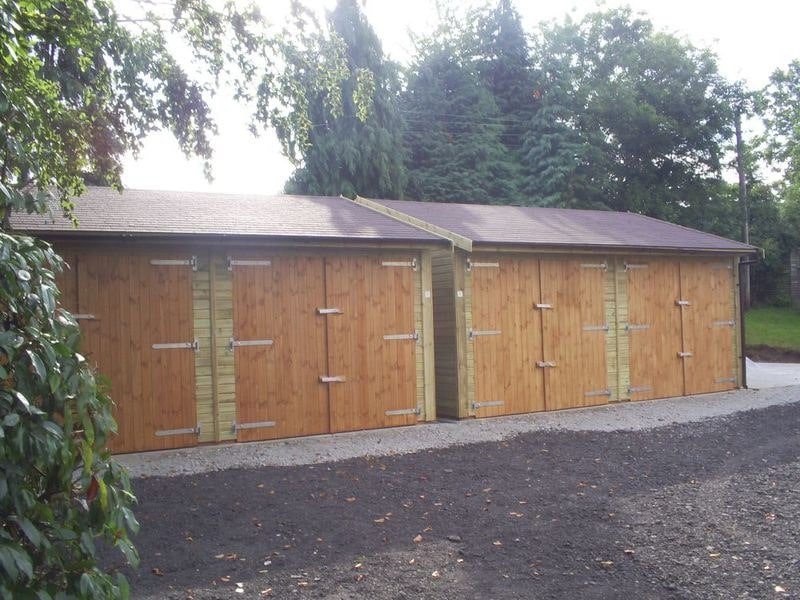

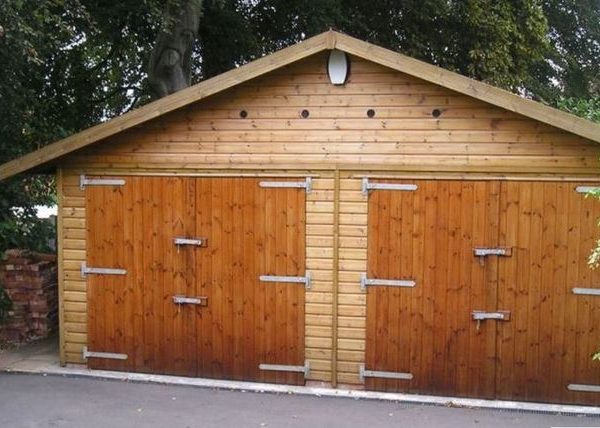

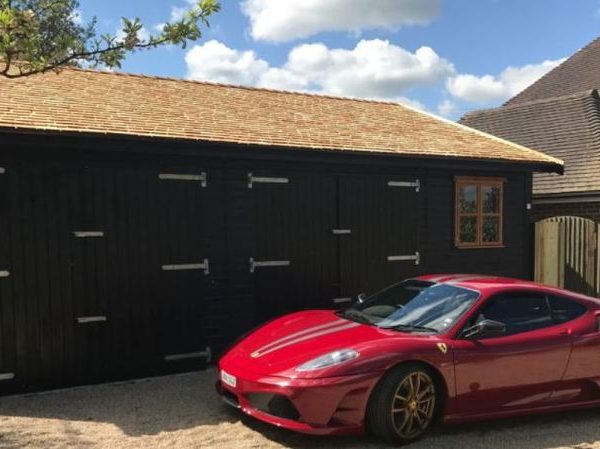

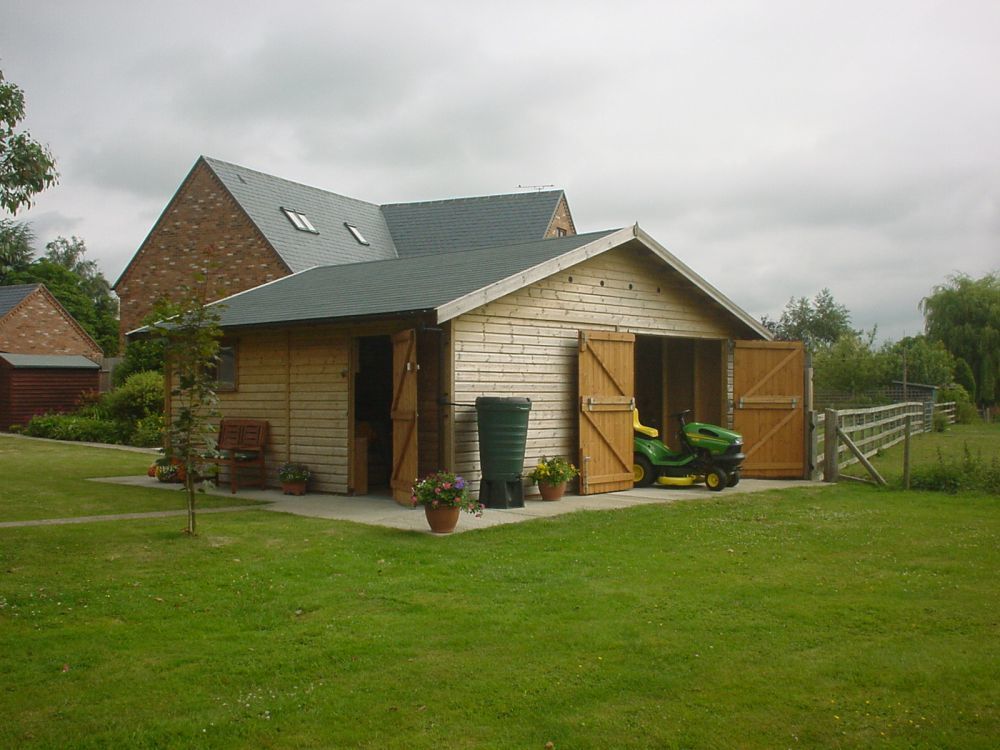

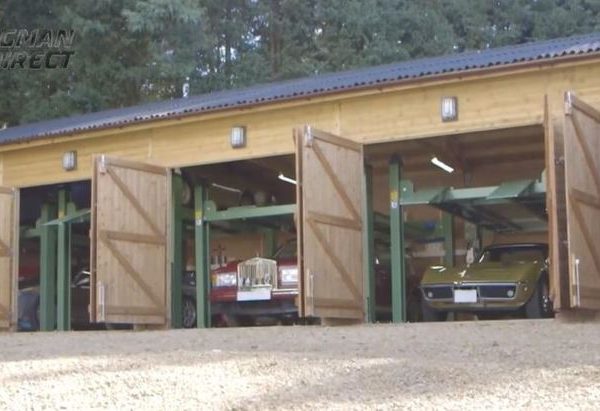

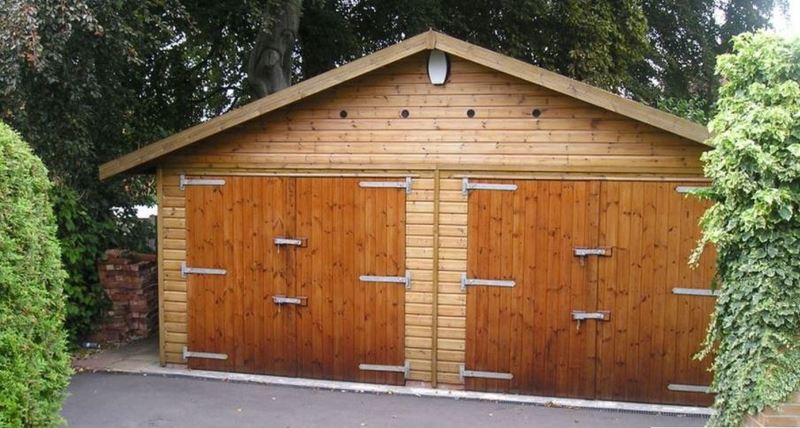

Double Barn Doors, are ledged & braced fully framed double doors, treated in golden brown. They are complete with 2 front over-locking latches, and 3 pairs of hook & band hinges. Internally there is a drop bolt & pad bolt on the secondary door to secure it, whilst allowing the right-hand door to open. The standard door size is 2440mm wide x 2134mm high.

OR

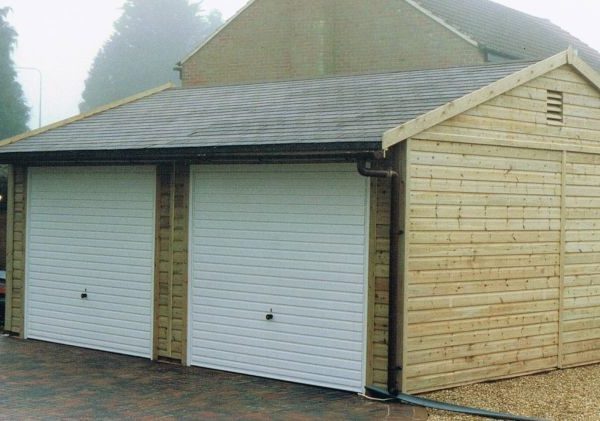

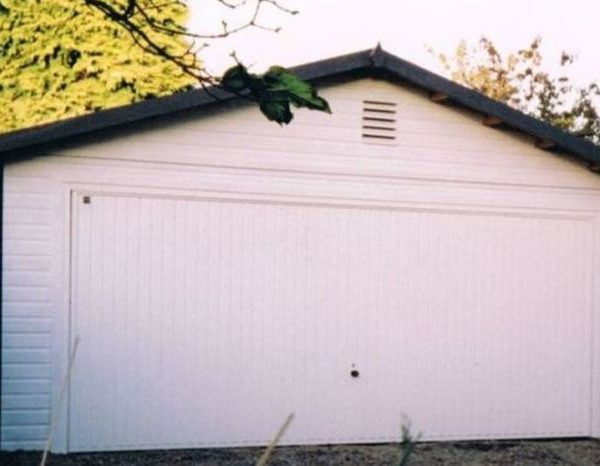

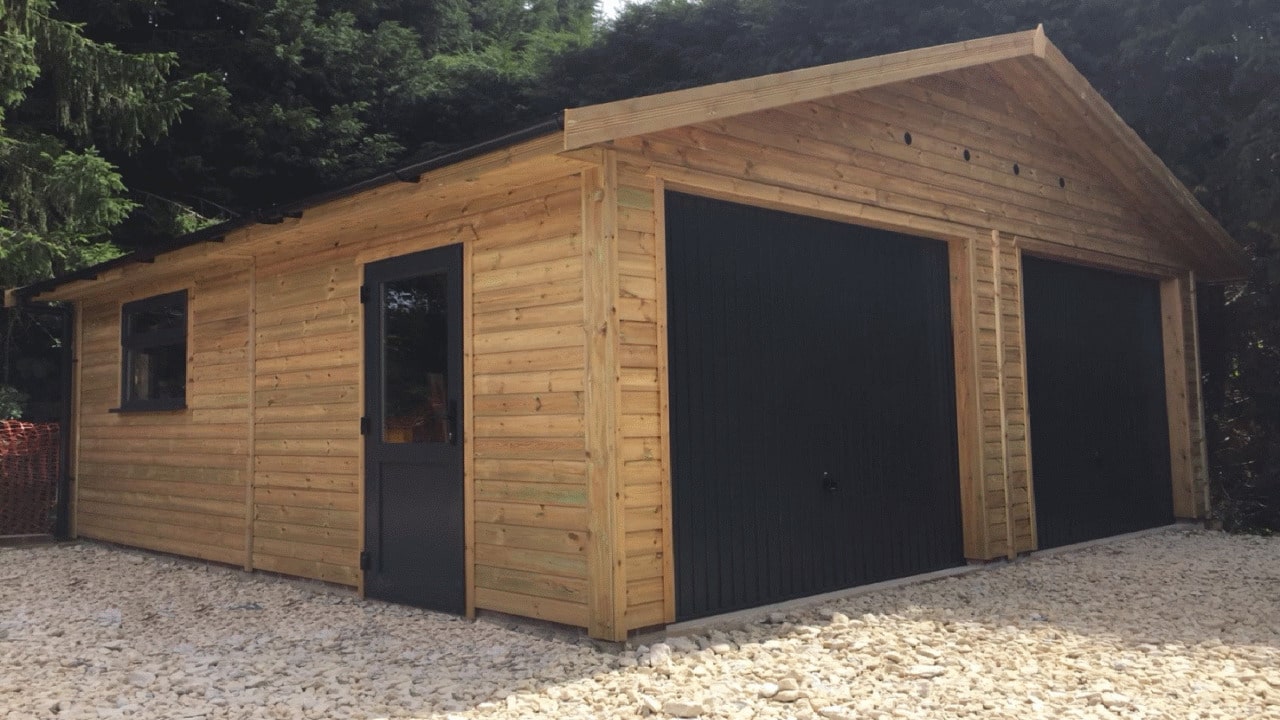

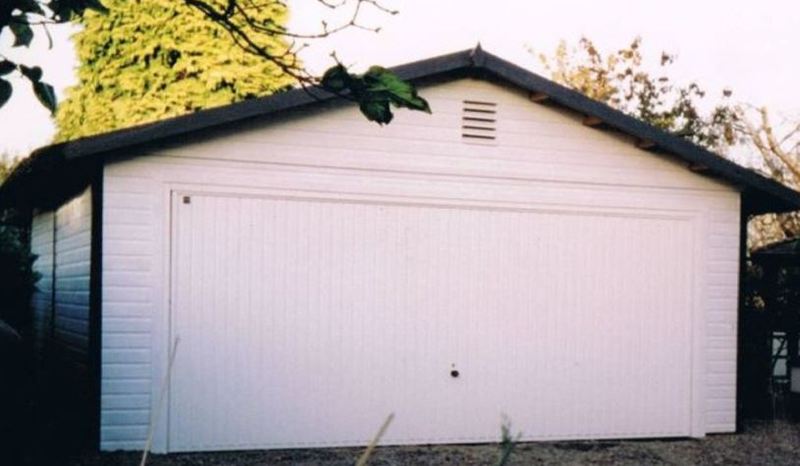

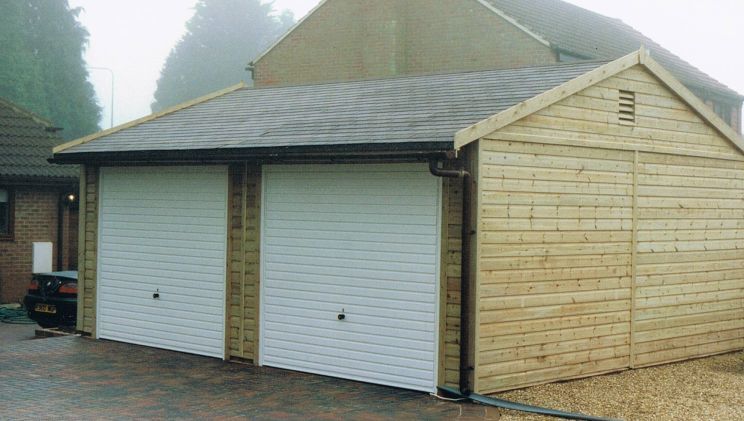

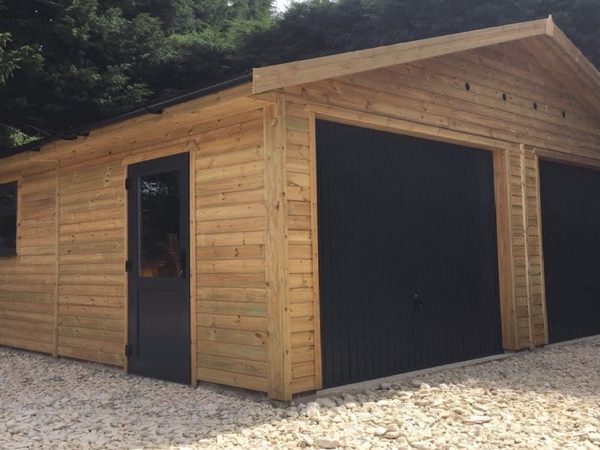

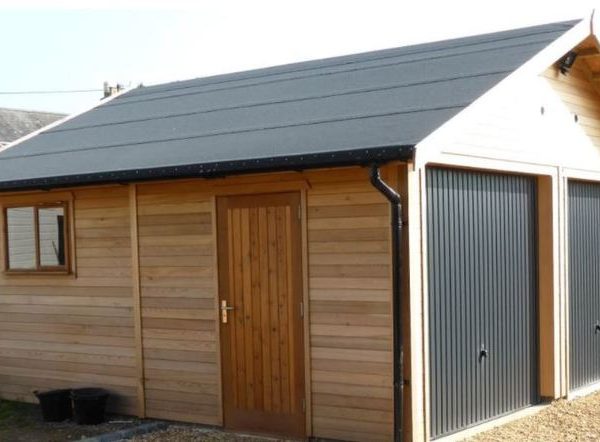

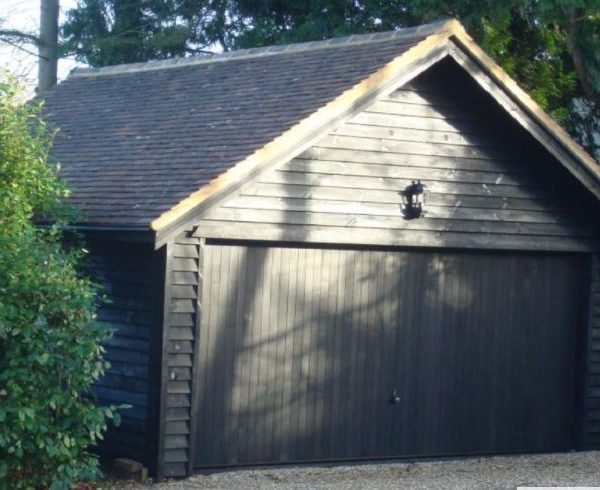

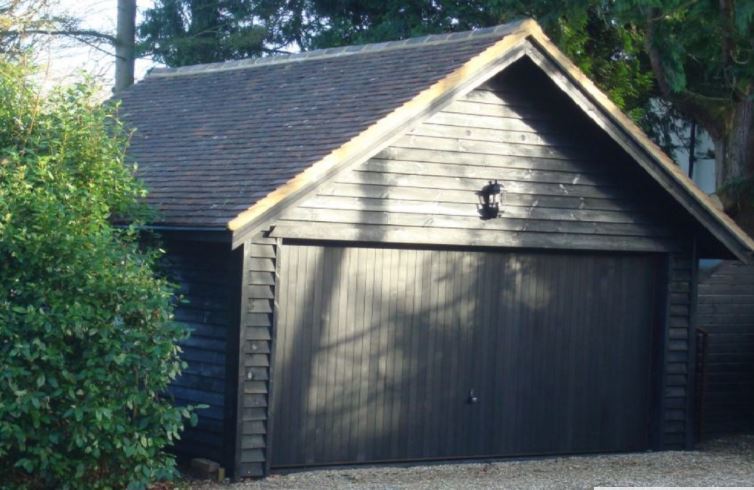

White, Brown, Black or Anthracite Grey Metal Up & Over Doors. – These are Hormann doors, complete with frame. The standard Up & Over door is a canopy design, however, should you require a motorised unit to be added, a fully retractable door will be required.

Should you wish to upgrade the standard doors, we offer the following options.

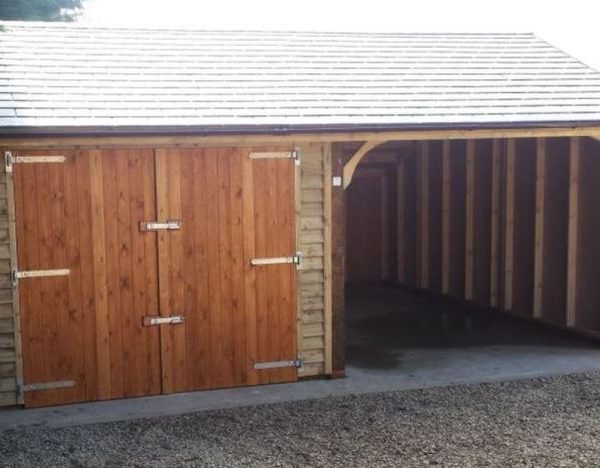

Cedar Double Doors. – These are the same size as the standard double doors; and are fully framed, and plywood lined. The front is constructed from Cedar tongue & groove, whilst the hinges are more ornate cup hinges (as opposed to hook & band hinges). The lever handle on the front controls two steel rods that locate in the ground and in the framing of the building to provide additional security. The secondary door features a pad bolt and a drop bolt.

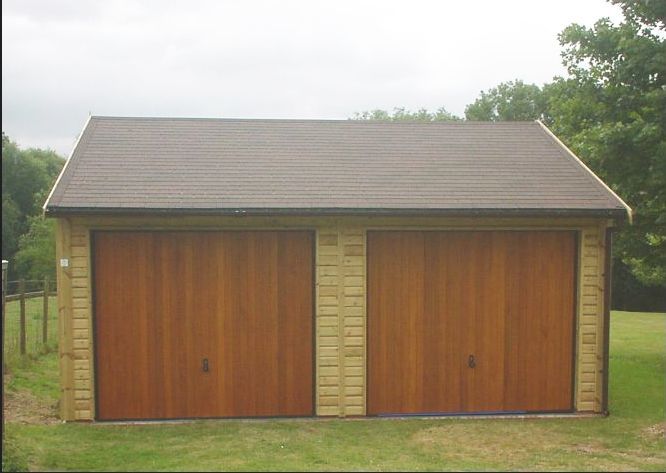

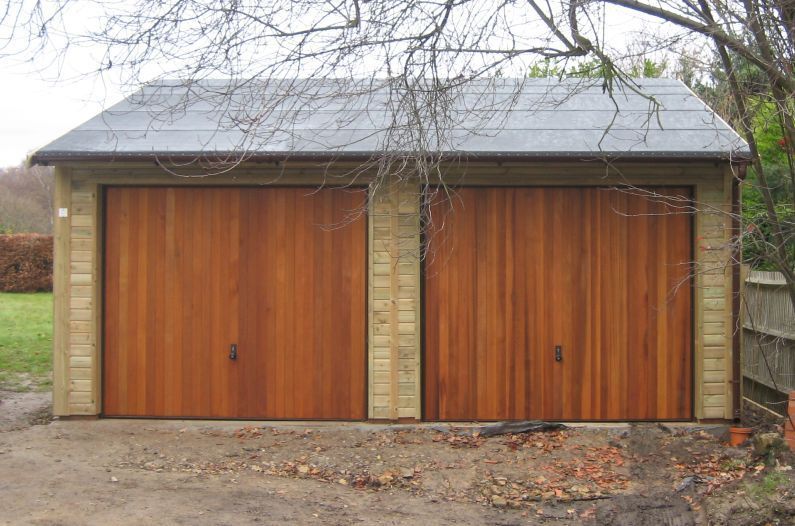

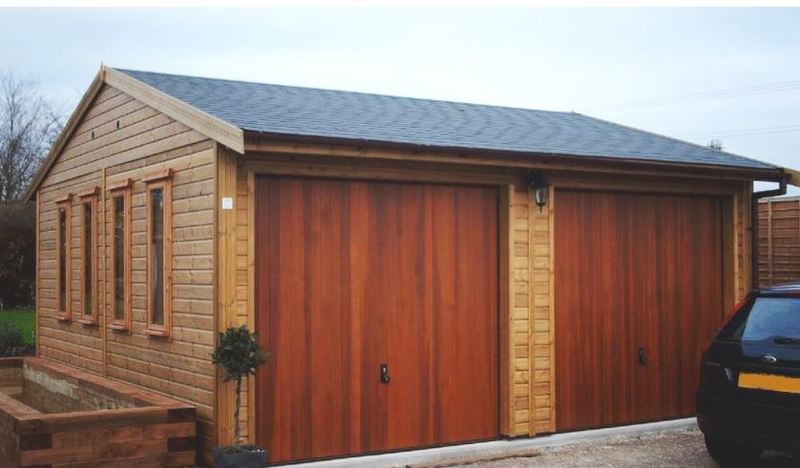

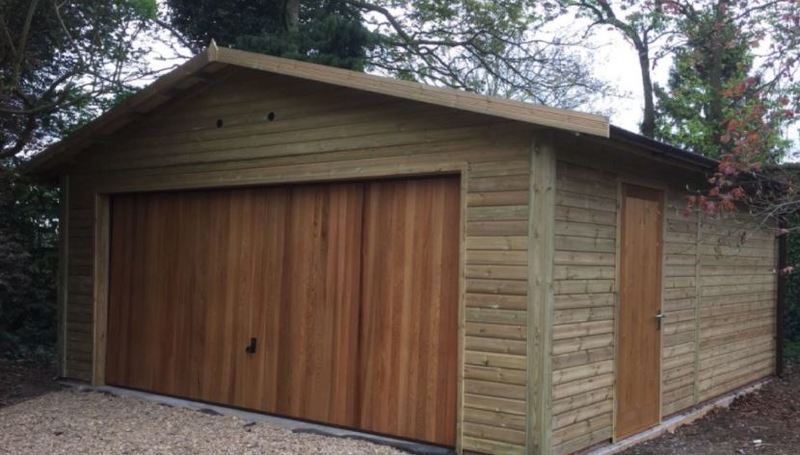

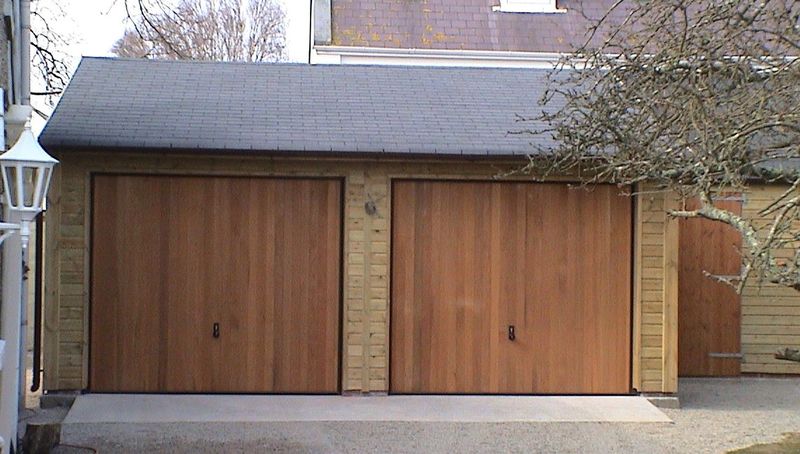

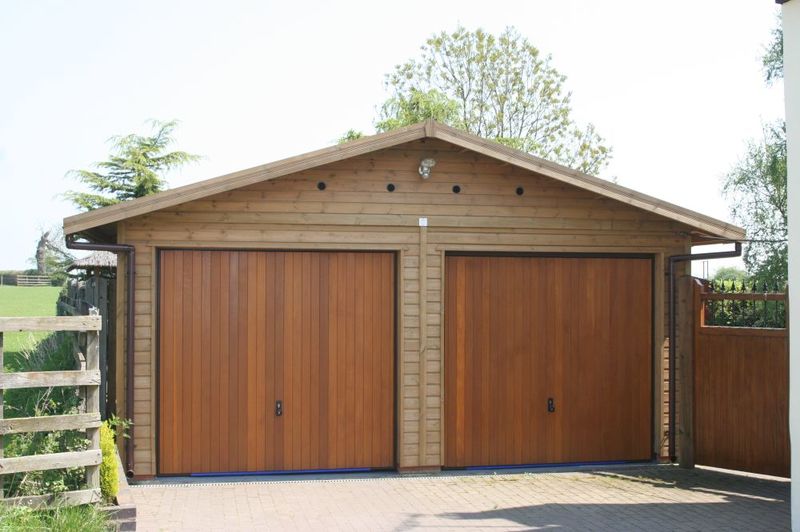

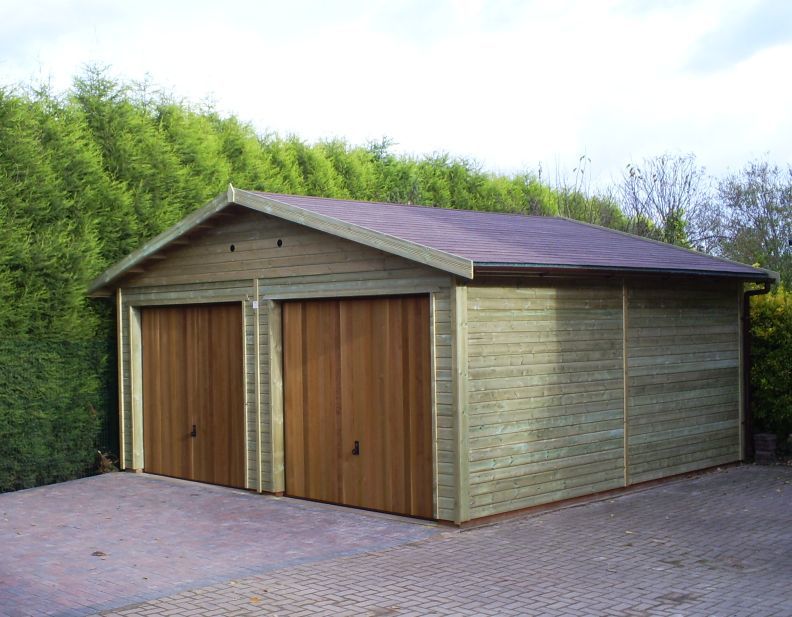

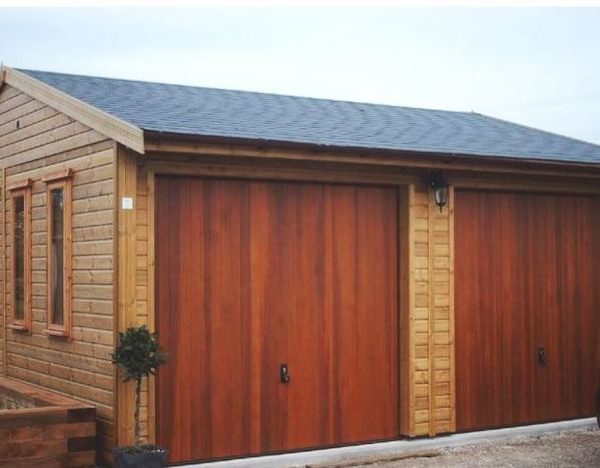

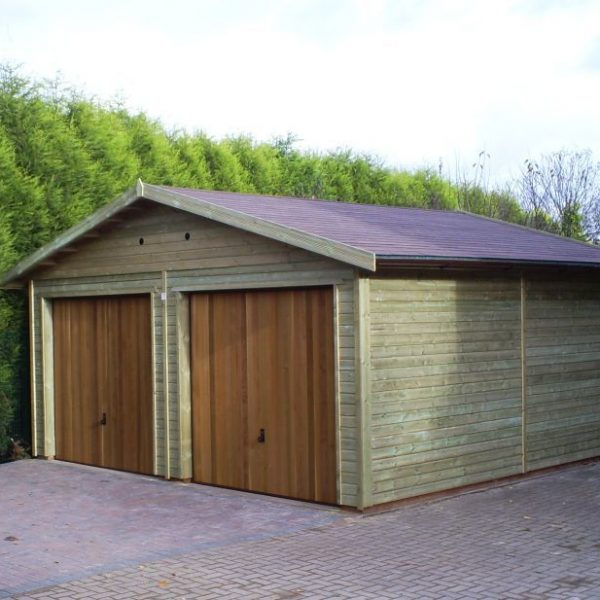

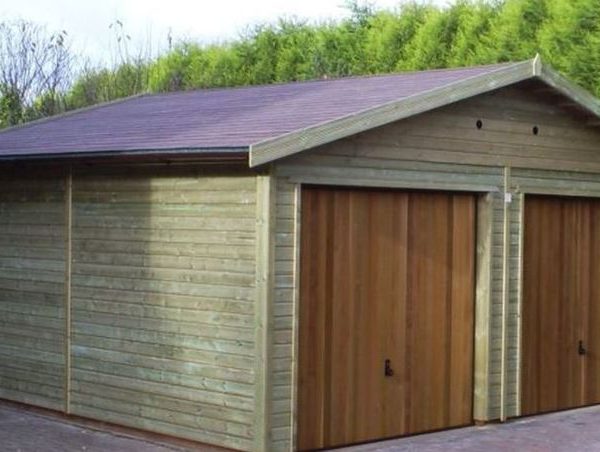

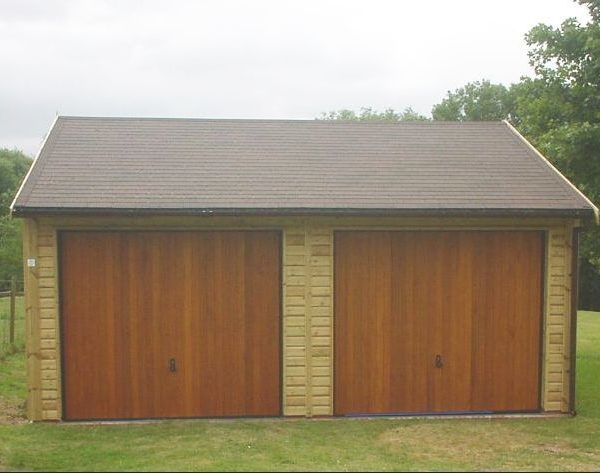

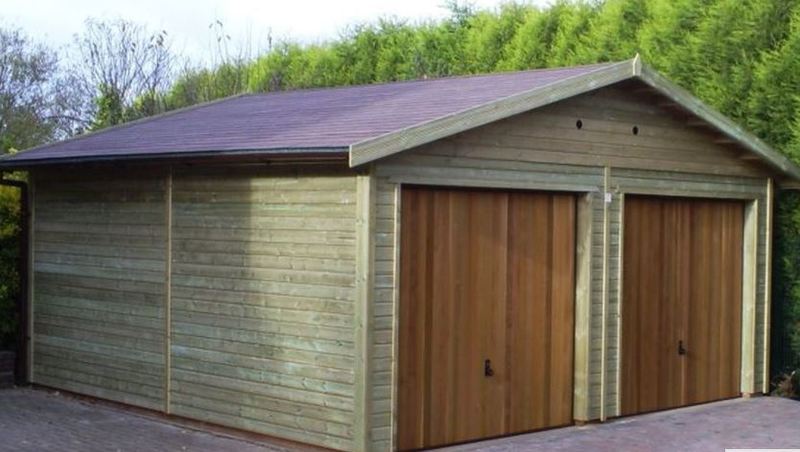

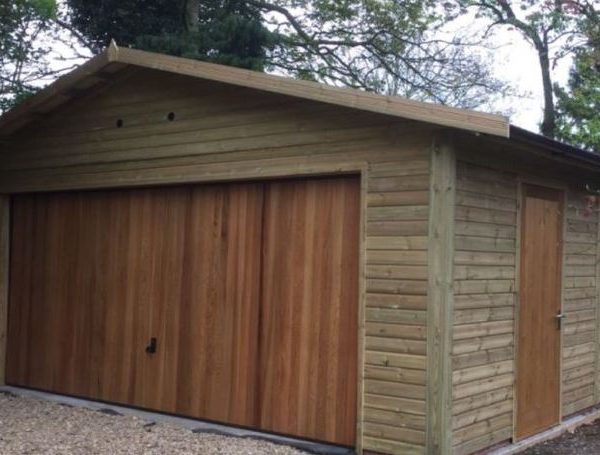

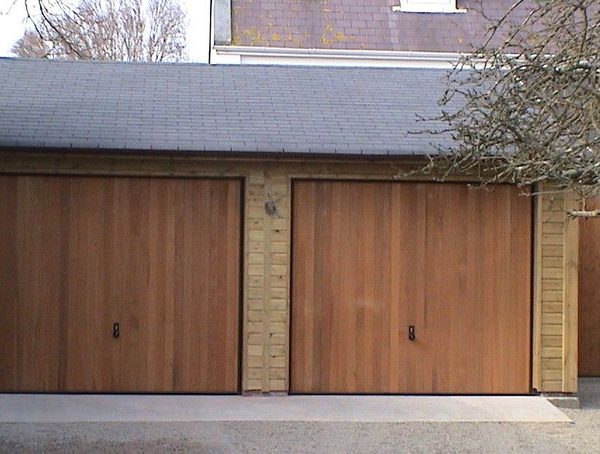

Cedar Infill Up & Over Doors. – These are Hormann Up & Over doors, and feature cedar timber within a metal frame. Again, the standard is a canopy style door, however should you require a motorised unit to be added, a fully retractable door will be required.

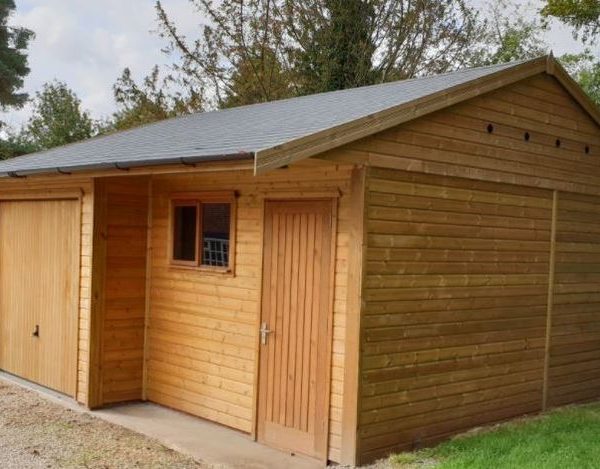

Personal Door. – Standard personnel timber door matches our standard double doors, in that they are ledged & braced and treated golden brown. Complete with 3 hook and band hinges, a pad bolt, and a hasp & staple (you will need to supply a padlock). Should you require a framed personal door, the size would be 840mm wide, and it would have a lever lock with a brass handle.

There are other doors available, please refer to ‘Additional Optional Extras’ below.

Bolted to Base

The customer or is required to construct a concrete base (or this can be provided by Garden Retreat) of 150mm compacted hardcore, and 100mm concrete. If laying a new base, we would recommend that a DPM (damp proof membrane) is laid between the two. If you have an existing base, it is not necessary to dig up and lay a membrane. Once the concrete is set, a single layer of slotted semi-engineering bricks are required around the perimeter (set to a plan provided by Garden Retreat). We recommend the concrete is larger all round (by 50mm) than the plan indicating the brick course.  This stops the concrete breaking out when the garage is bolted through the engineering brick course and then into the concrete base.

The sections of the garage sit on top of the brick course and are complete with a damp proof course. Our fitters will drill through the bottom rail of the building and into the concrete and fix the building in place.

If you require a quotation on the base or further information and advice please do not hesitate to contact us.

The standard roofing is a heavy duty 38kg Green Mineral Felt onto 12mm moisture resistant O.S.B. Boarding. The boarding is fitted onto 50mm x 125mm joists (purlins), spaced at 2′ centres. We can provide alternative roof coverings (please see options below). Should you require Onduline roof sheets – please note, we recommend sterling board underneath, because without the boarding it is liable to condensate during the winter.

Should you wish to upgrade the roofing for cosmetic reasons or to increase the time between maintenance, we offer the following options.

Coloured Polyester Felt – This is available in the same colours as our Felt Tiles (Brown & Grey) and has a life expectancy of about 15 years. Please note this is only available on buildings up to 7m in length.

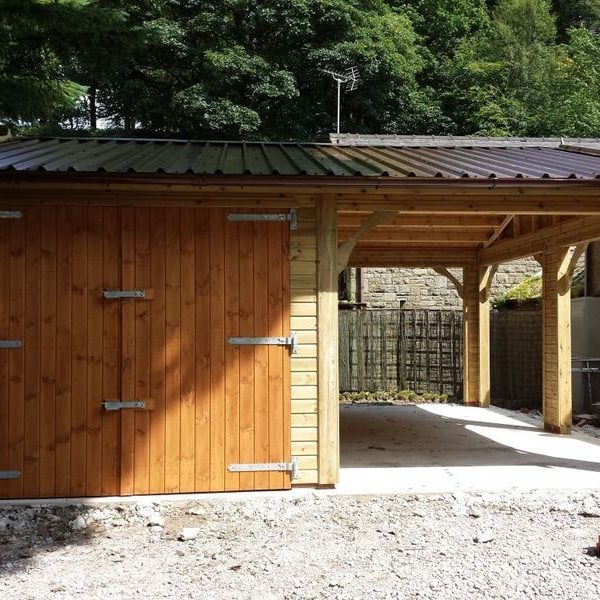

Metal Profile Roofing. – This has a metal profile roof in black or anthracite grey and comes with a water proof under felt.

Black Onduline Roofing. – This has a corrugated profile and is compressed felt & bitumen, giving a life expectancy of 15 years. The standard colour is black, although other colours are available. Onduline has the benefit of offering a clear roof sheet to allow light, however we recommend sterling board is fitted on the roof before the Onduline to prevent condensation.

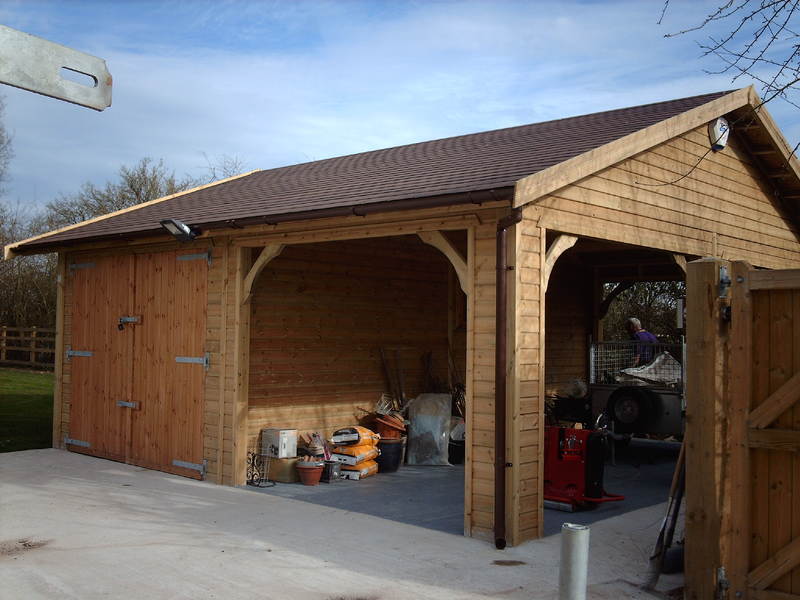

Felt Tile Roof. – These are sheets of felt that have a profile of 4 individual tiles within the sheet. They overlap each other and are staggered to provide a tiled effect roof. In addition to the tiles, underlay felt is laid over the boarding beforehand to provide a secondary skin. Angled tin and additional felt strips are fitted to the gables to prevent water ingress, thus providing a life expectancy of over 15 years.

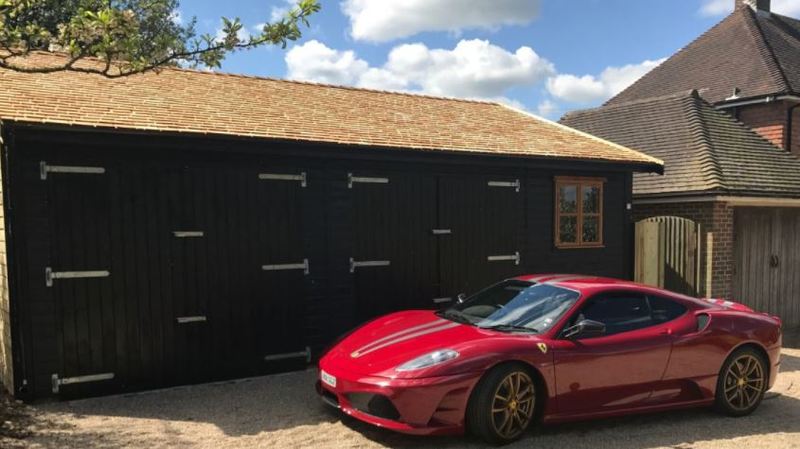

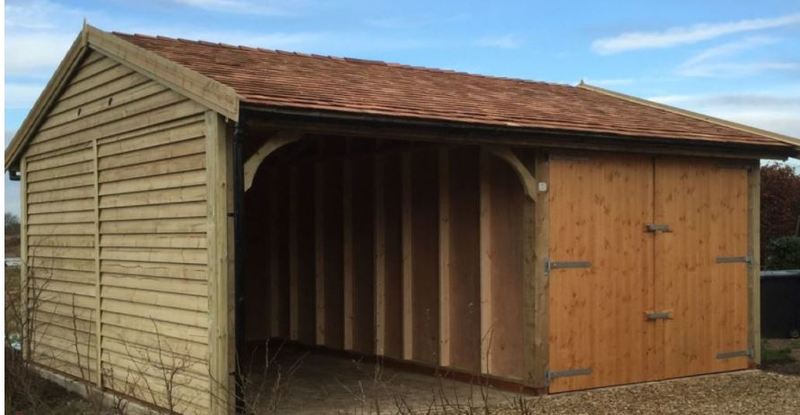

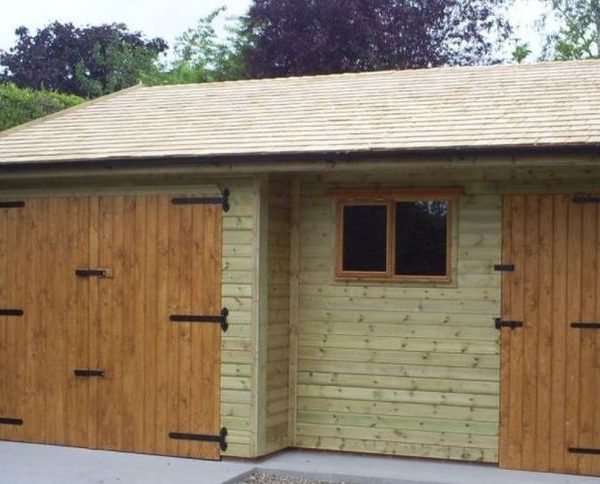

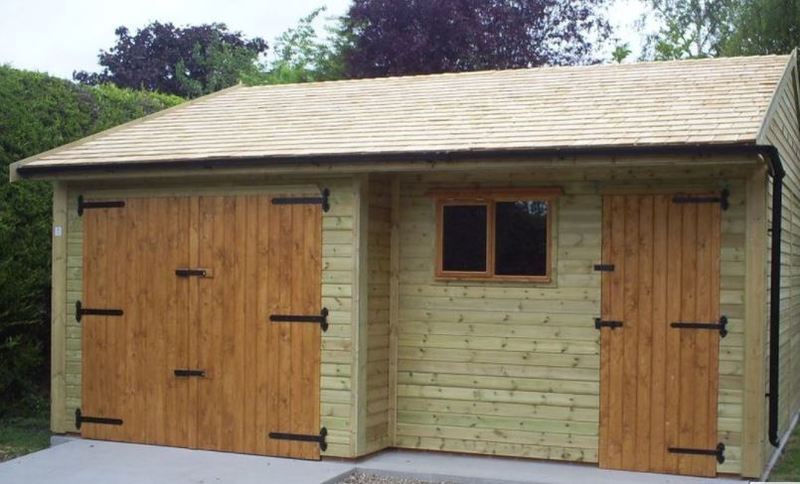

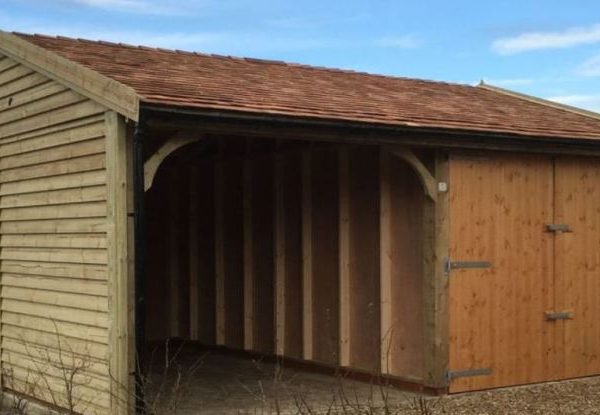

Cedar tiles – These make a beautiful addition to any of our buildings, long lasting and they are set out on battening with under felt

Tapco Slate tiles. – These tiles have a life expectancy of 50 years and look fantastic as a lightweight replacement slate tile, follow the link to find out more about ‘Tapco Slate’

Tiled Roof Option. – Should you require a tiled roof for planning reasons, we would be able to provide and fit the roof trusses (at 600mm centres) with a 30 degree pitch. We clad the gable ends for you, and fit the trusses in place, however a local tiler will need to batten & tile the roof, plus fit the soffits & guttering.

For further details & prices, please contact us

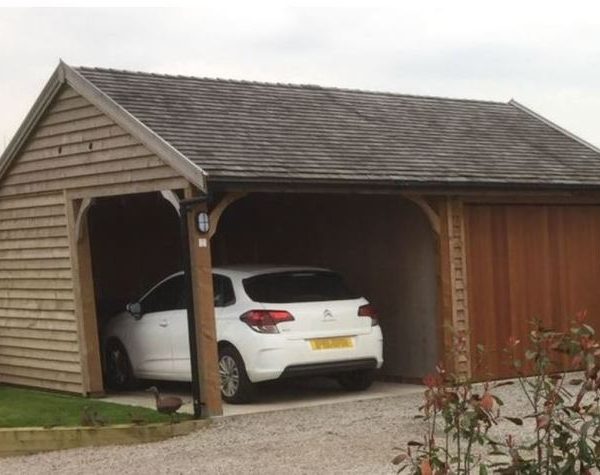

Not only do overhangs improve the appearance of the garages, they are important as they offer protection to the sides of the buildings. We include guttering as standard in either brown or black to allow rainwater to be easily collected and re-used, along with the obvious protective benefits.

Electrics can be provided by Garden Retreat, if you require a quote please do not hesitate to contact us.

  • External Clad –  16mm Nom x 125mm tanalised shiplap cladding requiring no maintenance for 25 years.
  • 3 Layer triple lined external wall – Shiplap cladding plus vapour barrier, splash back DPM skirt, 4mm plywood lining all double nailed onto 100mm x 38mm timber framing.
  • Vapour Barrier – The built-in vapour barrier is an essential element of the structure to keep the damp out of the building.

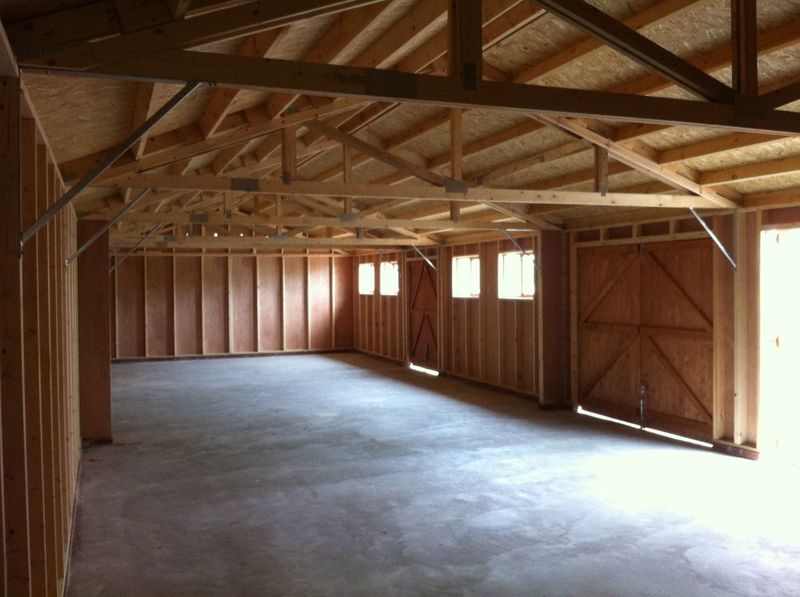

  • 100mm 38mm Framing – Scandinavian Redwood, slow grown which provides a closer grain to provide structural strength and rigidity.
  • Pitched Roof at 20 Degrees – The pitched roof offers more headroom with the vaulted ceiling design.
  • Vents in gable End – Ventilation is essential to enable the garage structure to breath naturally.
  • Standard Double Doors – Brown fully framed timber doors with 2 over locking latches and galvanised fittings. Inside a pad bolt and drop bolt secures the left-hand fixed door. Alternatively, you can choose an up and over door.
  • Standard Roofing – for heavy duty use, 125mm timber purlins with 12mm OSB3 boarding followed by heavy duty 38kg green mineral felt roof.
  • Bolted Down – The garage is bolted through the bottom rail, passes through the hole in the semi engineering brick into the concrete.  This is repeated a number of times around the bottom rail to ensure the structure is secure and rigid.
  • FSC Sustainable timber – All timber is from Scandinavian certified and sustainable forests.
  • Standard Overhangs – 300mm to the front and sides, 150mm to the rear when the doors are in the gable ends. 300mm to the front and back, 150mm to the gable ends when the garage doors are under the eaves.  The guttering would be in addition to this.  Overhangs can be adjusted if required, for example space restrictions.
  • Ground Work – There are a range of options, Concrete base or existing hard standing.  For more information please click here or contact us for advice.
  • 2.5m High Garages – the garages are designed to be over 2.5m high as they are built with doors 7ft high. If the building needs to be 2.5m to the ridge height the sections are smaller, and the pitch of the roof is more shallow. Garages with trusses bigger than 4.2m will require structural partitions to support the centre trusses.
WINCHESTER TIMBER FRAMED GARAGE OPTIONS INCLUDED ADDITIONAL
AS STD COST
ADDITIONAL EXTERNAL BUILDING OPTIONS
Reduce to 2.5m for planning purposes YES NO
Tanalised (pressure treated) 16mm nom x 125mm Redwood Cladding YES NO
Feather edge cladding NO YES
Cedar Cladding NO YES
ADDITIONAL GARAGE DOOR OPTIONS
Metal up and over doors in Grey, Brown, Black or White YES NO
Fully Framed golden oak barn Doors NO YES
Elegance up and over door NO YES
Cedar infill up and over door NO YES
Cedar fully framed barn doors NO YES
Canopy style up and over door YES NO

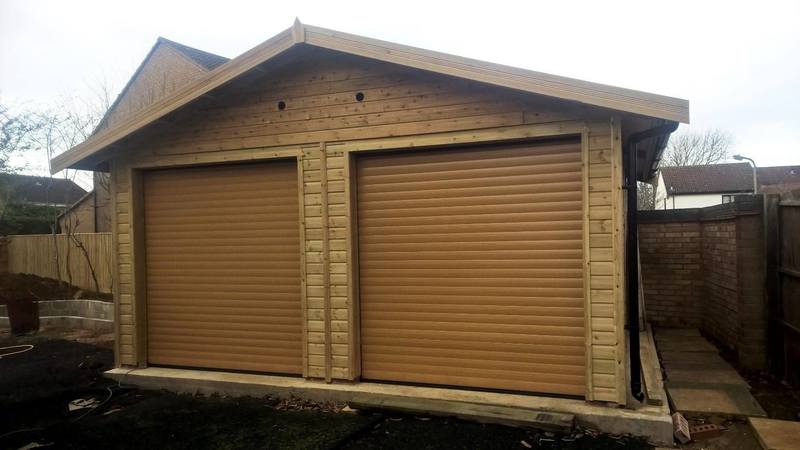

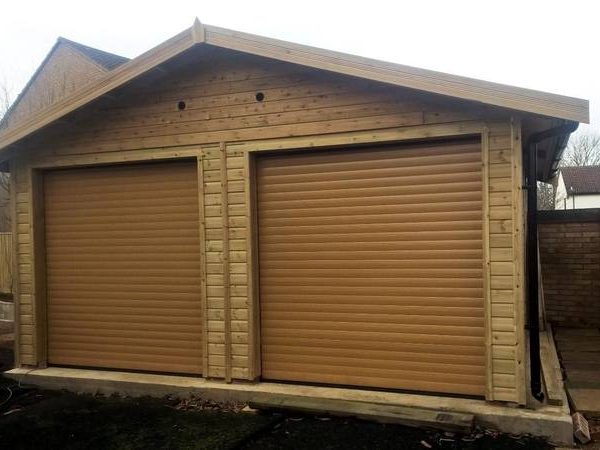

Retractable style up and over door for automation NO YES
ADDITIONAL WINDOW & DOOR OPTIONS
uPVC D/G Casement Window, side opening (610mm wide x 915mm high) NO YES
uPVC D/G Double Casement Window, both opening (610mm wide x 915mm high) NO YES
uPVC D/G Traditional Window, both opening (915mm wide x 1050mm high) NO YES
uPVC D/G Picture Window, top opening (900mm wide x 900mm high) NO YES
uPVC D/G Small Garage Window, side opening (985mm wide x 670mm high) NO YES
uPVC D/G Large Garage Window, top vent (1200mm wide x 900mm high) NO YES
uPVC D/G Top vent window (900mm wide x 400mm high) NO YES
Standard personnel timber door NO YES
uPVC Standard personnel door NO YES
uPVC Standard half glazed personnel door NO YES
uPVC Standard half glazed traditional door NO YES
There is an option of either black, brass, anthracite grey or chrome window and door furniture YES NO
Triple glazed up-grade NO YES
ADDITIONAL ROOF COVERING & MISCELLANEOUS OPTIONS
Heavy Duty 38kg mineral felt YES NO
Metal profile roof (with underfelt) NO YES
Slate grey felt tiles (with underfelt) NO YES
Red / Brown felt tiles (with underfelt) NO YES
Cedar Shingles (with underfelt) NO YES
Tapco Slate (with underfelt) NO YES
Lined overhangs NO YES
Internal partitions NO YES
Black or brown guttering / down pipes YES NO
70mm Celotex Insulation to Roof – lined with 9mm birch ply NO YES

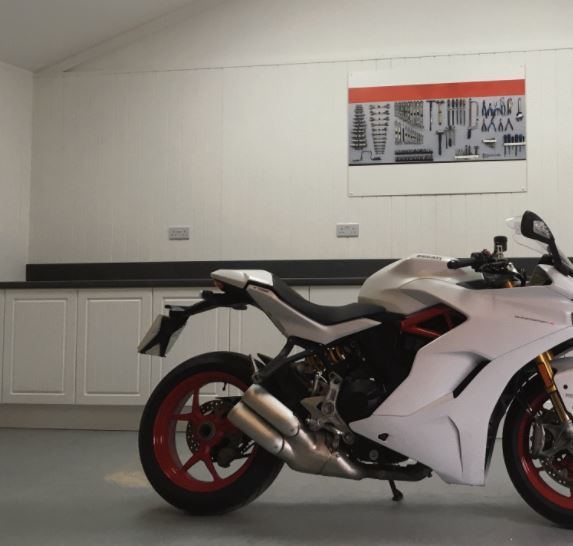

70mm Celotex Insulation to Walls – lined with 12mm T & G Lining boards NO YES
70mm Celotex insulation to Floor – with 15mm plywood & 75mm tanalised joists NO YES

Garden Retreat can provide either Hire Purchase or Finance lease options and there is also a large amount of other funding resources available.

If you require planning information we are happy to advise and support, please click here for further information.

5.5m Wide x 4.9m Deep £8,535.00
5.5m Wide x 5.5m Deep £8,865.00
5.5m Wide x 6.1m Deep £9,195.00
5.5m Wide x 6.5m Deep £9,525.00
5.5m Wide x 7.0m Deep £9,855.00
6.1m Wide x 4.9m Deep £8,865.00
6.1m Wide x 5.5m Deep £9,195.00
6.1m Wide x 6.1m Deep £9,525.00
6.1m Wide x 6.5m Deep £9,855.00
6.1m Wide x 7.0m Deep £10,185.00
7.0m Wide x 4.9m Deep £9,635.00
7.0m Wide x 5.5m Deep £10,075.00
7.0m Wide x 6.1m Deep £10,515.00
7.0m Wide x 6.5m Deep £10,955.00
7.0m Wide x 7.0m Deep £11,395.00
8.0m Wide x 4.9m Deep £10,405.00
8.0m Wide x 5.5m Deep £10,845.00
8.0m Wide x 6.1m Deep £11,285.00
8.0m Wide x 6.5m Deep £11,725.00
8.0m Wide x 7.0m Deep £12,165.00

All our buildings included delivery and installation although please contact us for delivery prices if you are located in Cornwall or Scotland.

All our buildings are installed buy our fully trained crews who have many years of experience.

Our installation crews will require clear access free from obstacles, trees, vegetation, overhead cables from the delivery vehicle to the site where the building will be erected.

They will also require 400mm clearance around the building to allow your building to be erected safely with clearance suitable for ladders and steps. If there is less than 400mm please contact us to discuss the options.

Sections can be as large as 3.0m x 2.4m hence we will need to know of any obstacles, bends or height restrictions before manufacture takes place.

Delivery & installation takes place on the same day via a 7.5 tonnes lorry – 28 feet long x 8ft wide.

A majority of buildings are installed within a single day, however larger garden offices, triple garages and commercial units will require more days on site. We will indicate the estimated assembly time at the time of order.

We will require a postcode for the site address and sufficient parking on the day of delivery to allow the installation crew to park as close to the site as possible.

Should your site be further than 30m from the parking location, please contact us prior to manufacture to ensure that we can deliver and install safely.

Please note that on some occasions we can take sections of buildings through the house but there is a surcharge to do so as the sections need to be made smaller and we require more staff on site to carry the sections through the house.

If you have any questions or queries concerning delivery and installation please do not hesitate to contact us.
