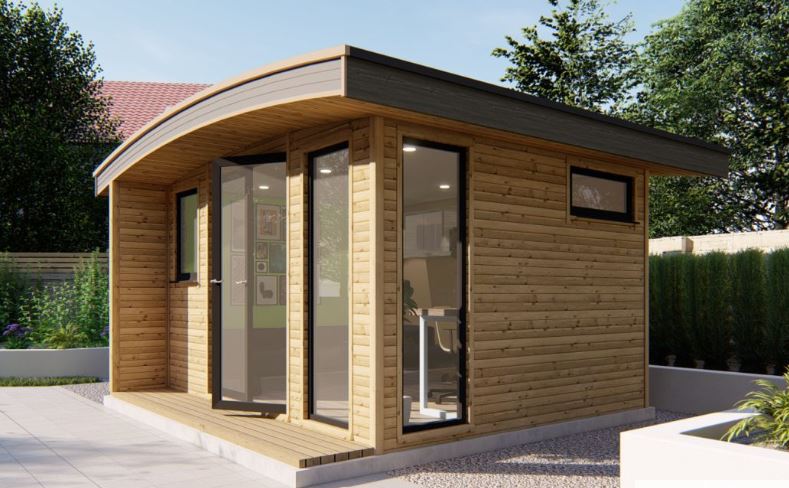

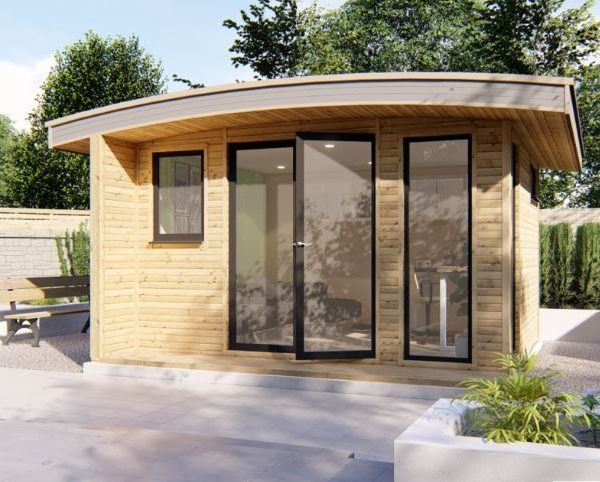

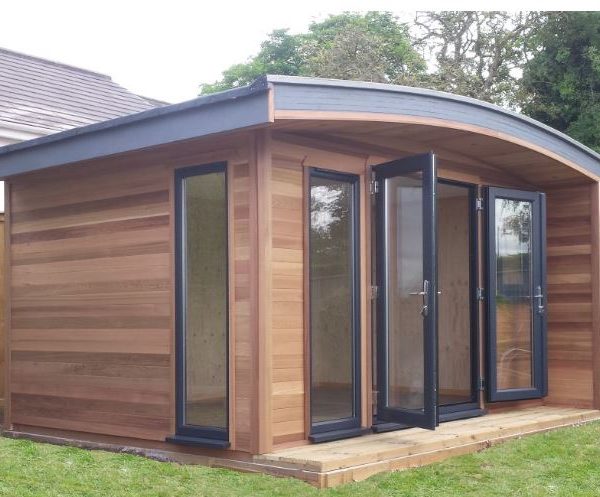

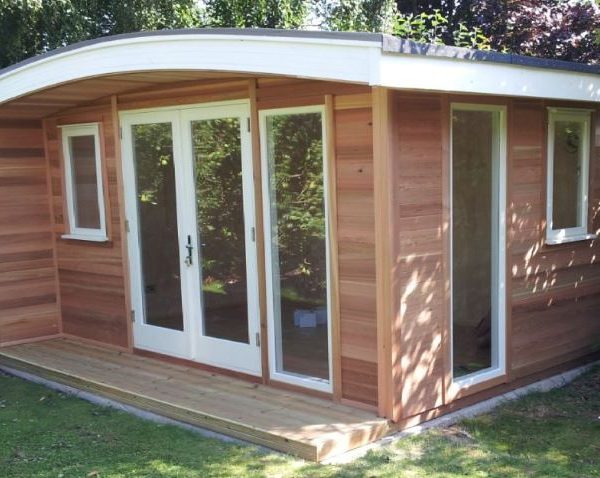

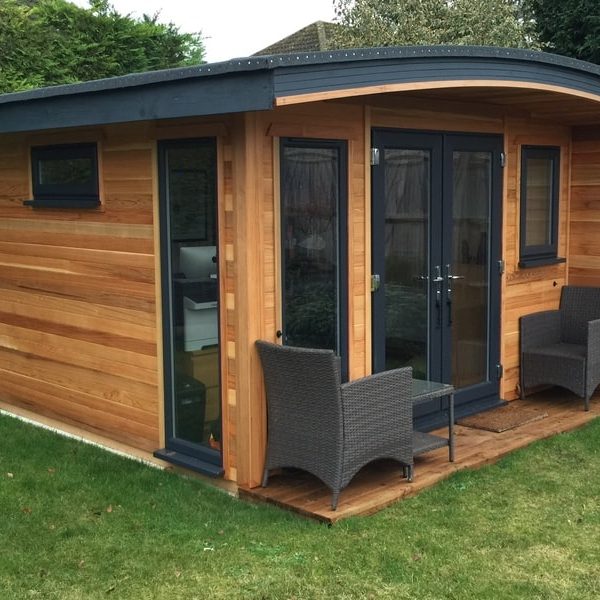

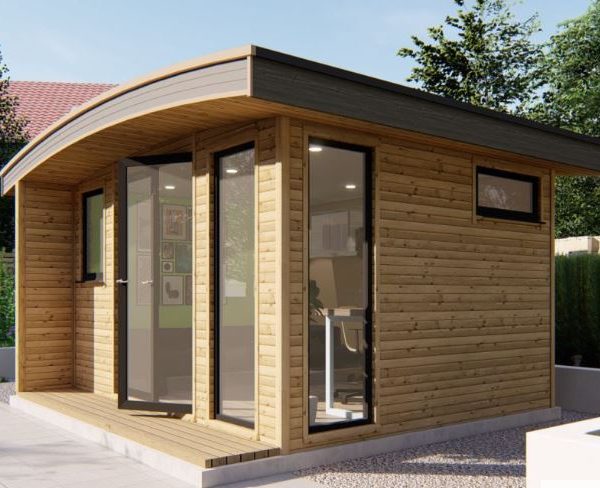

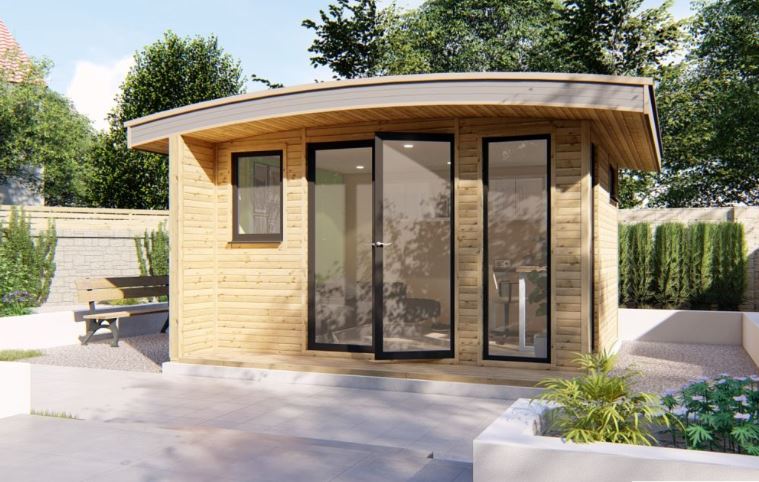

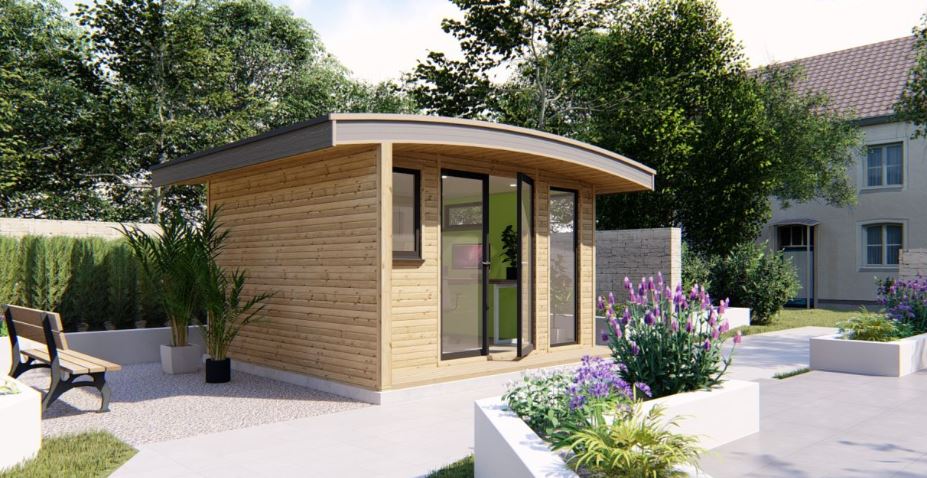

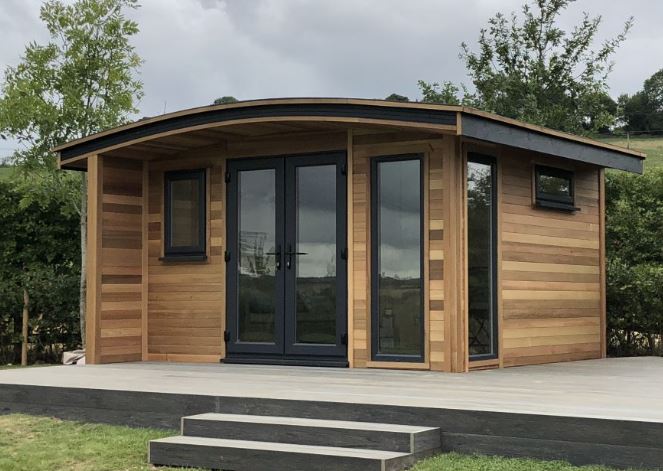

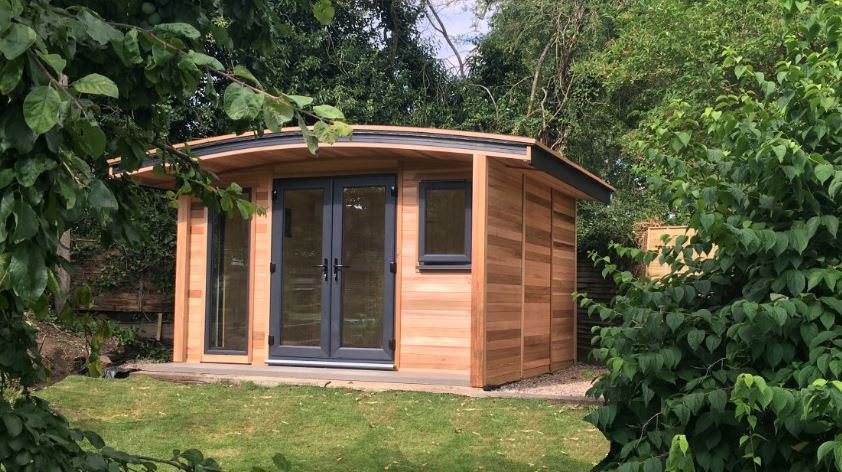

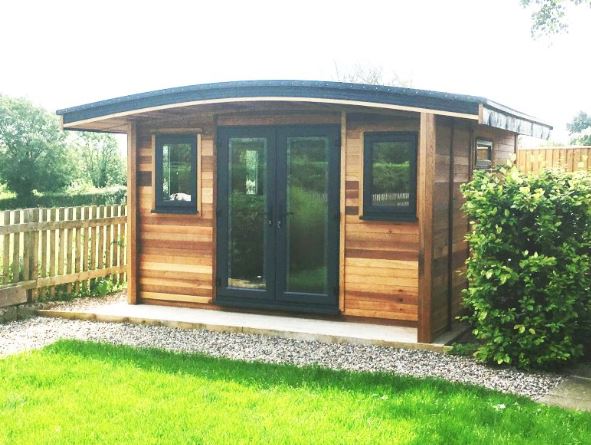

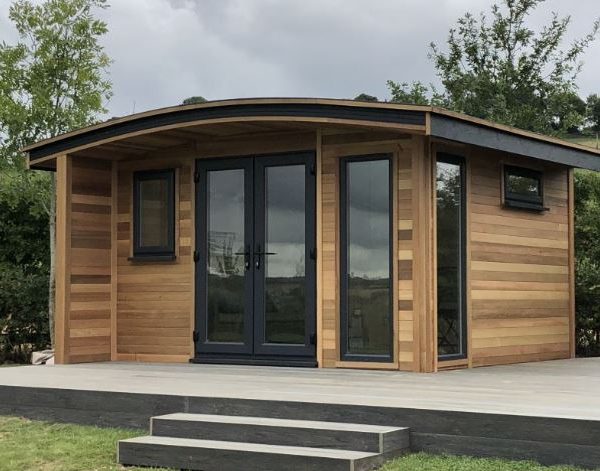

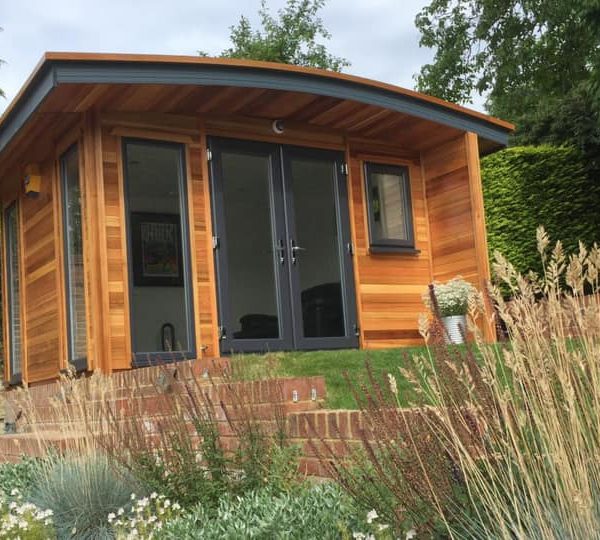

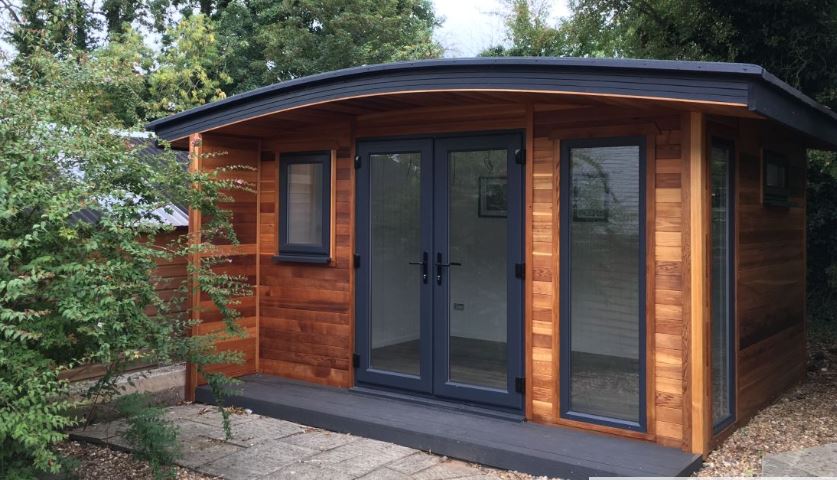

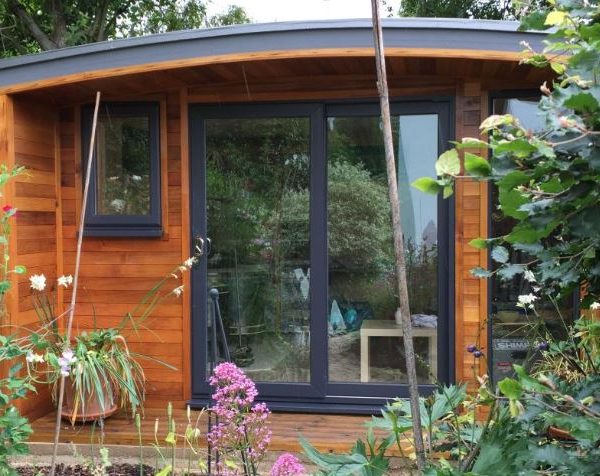

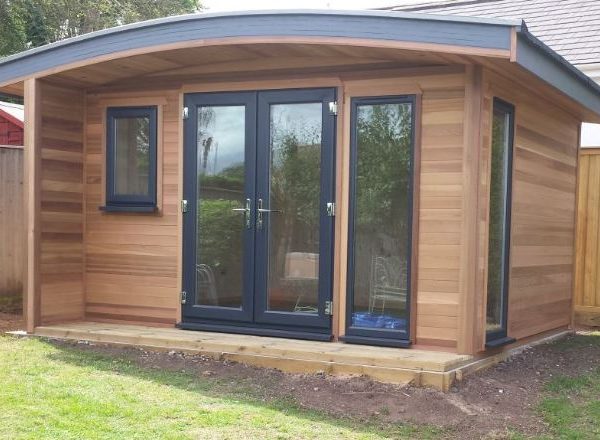

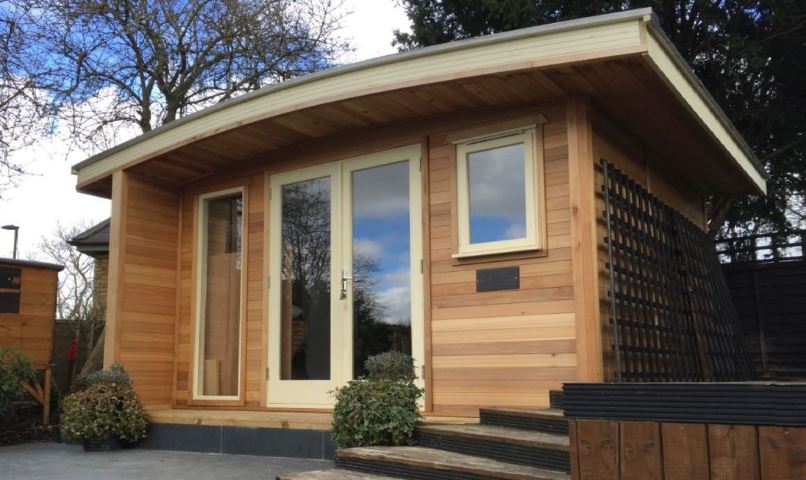

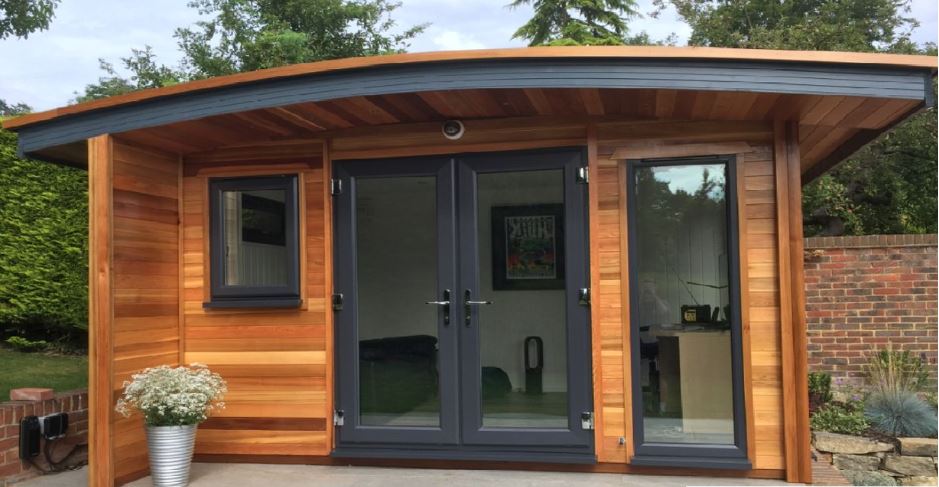

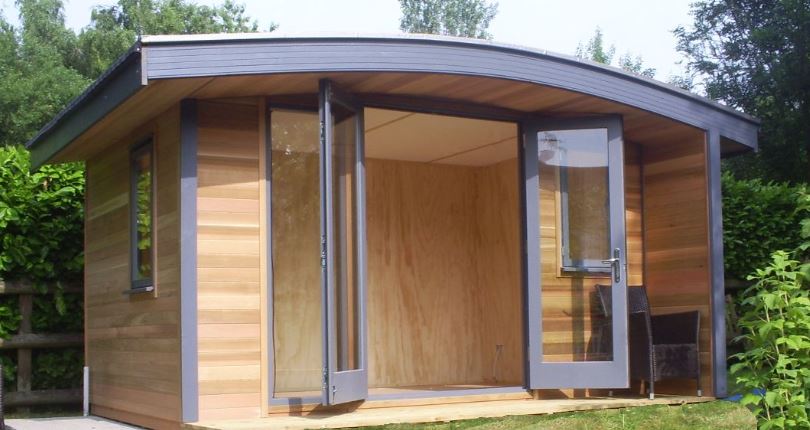

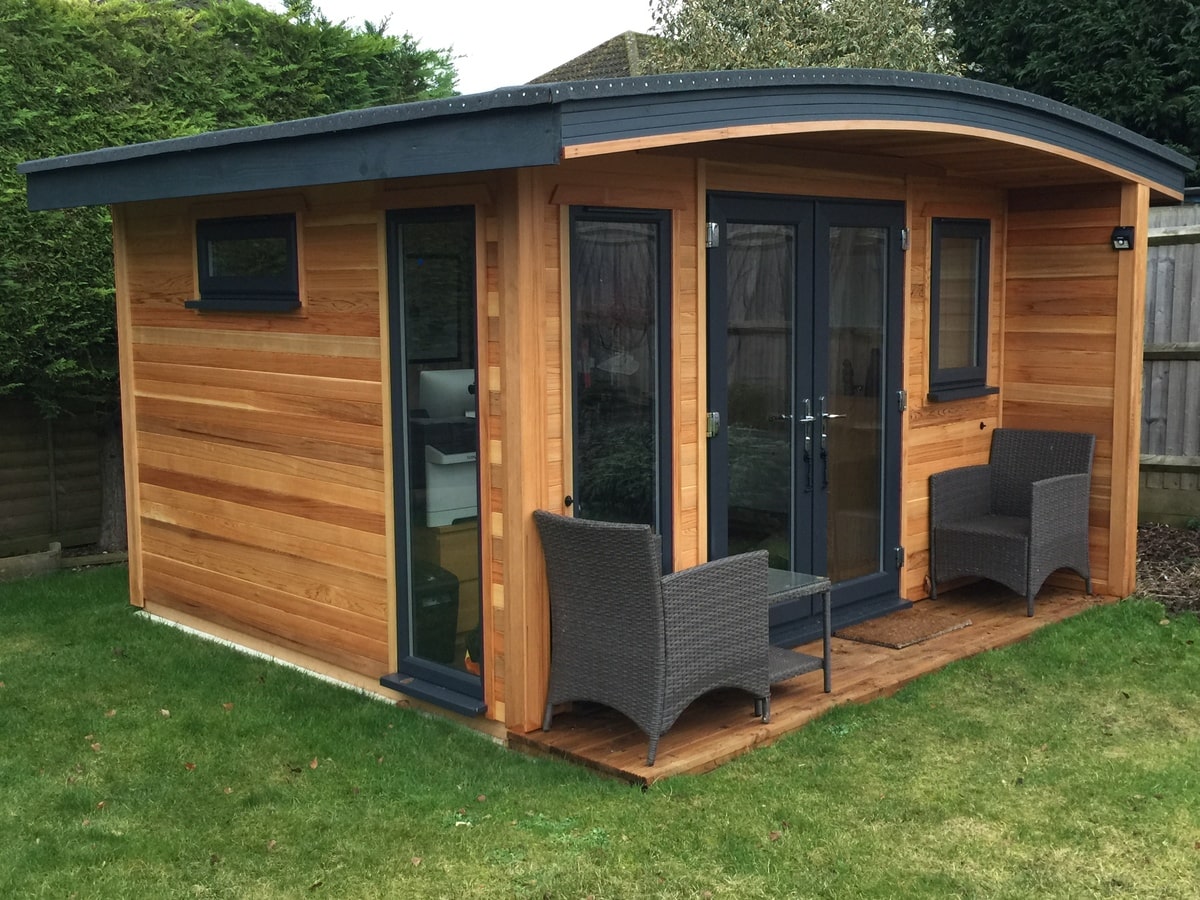

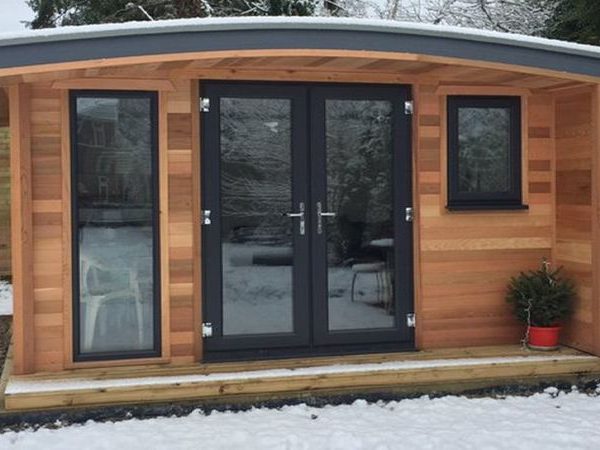

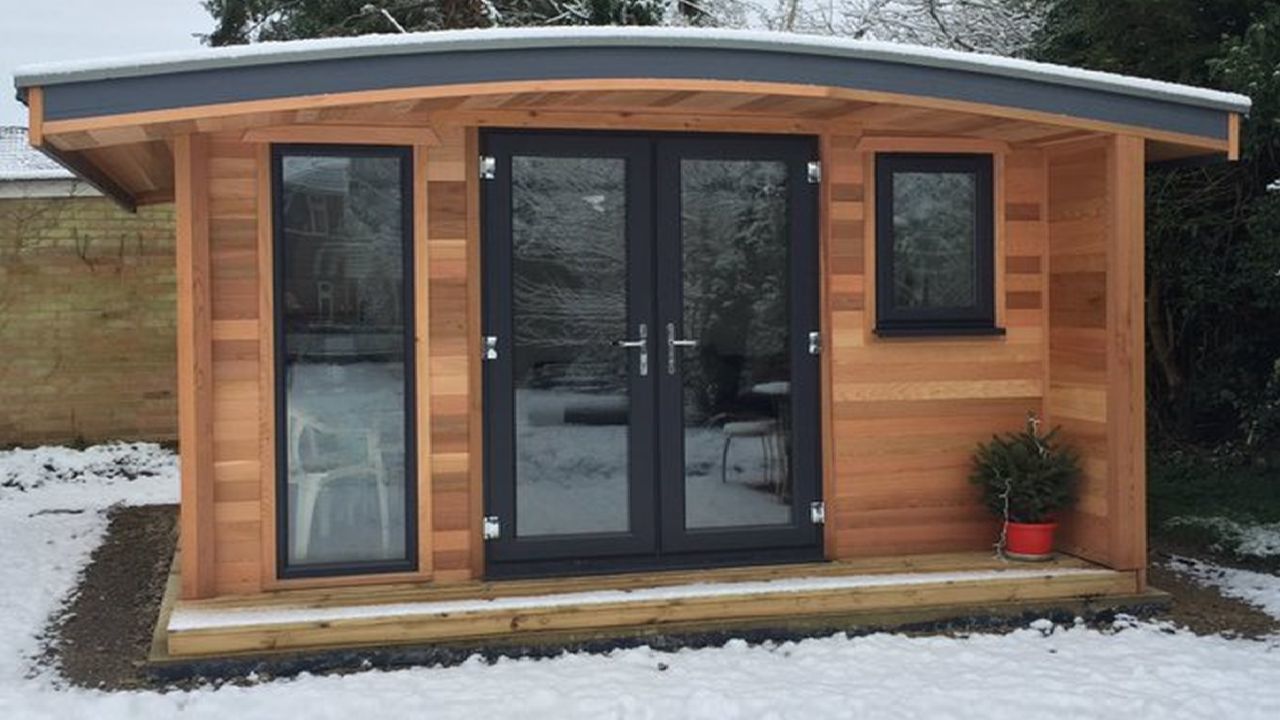

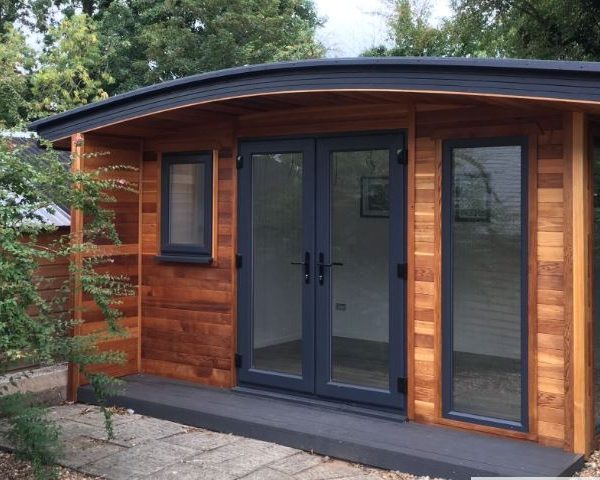

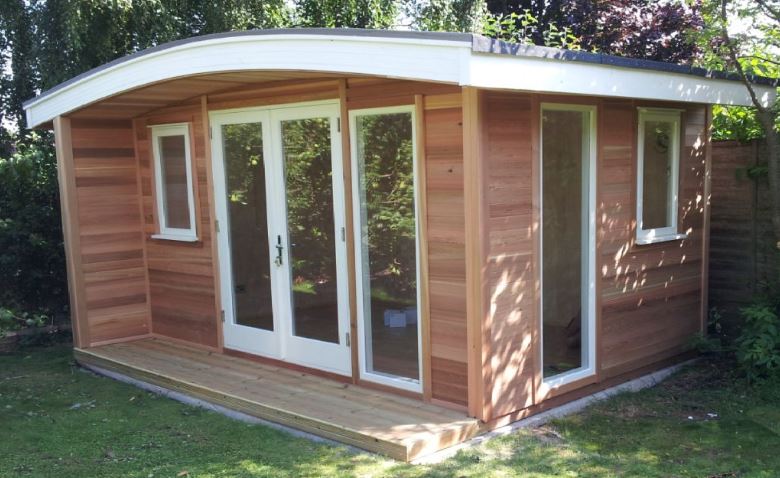

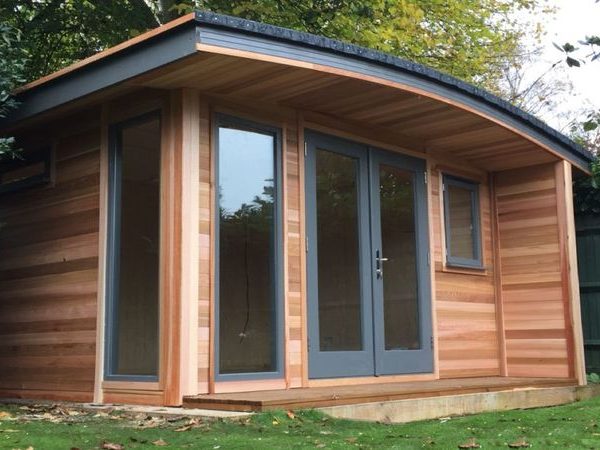

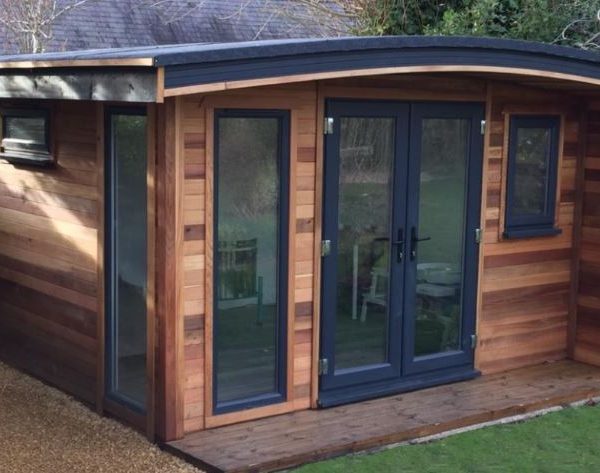

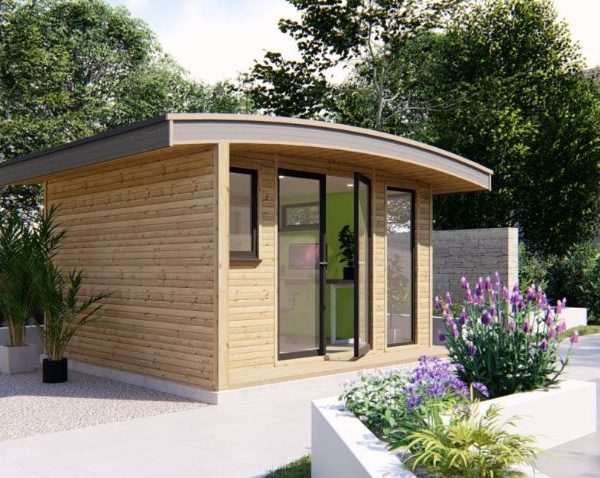

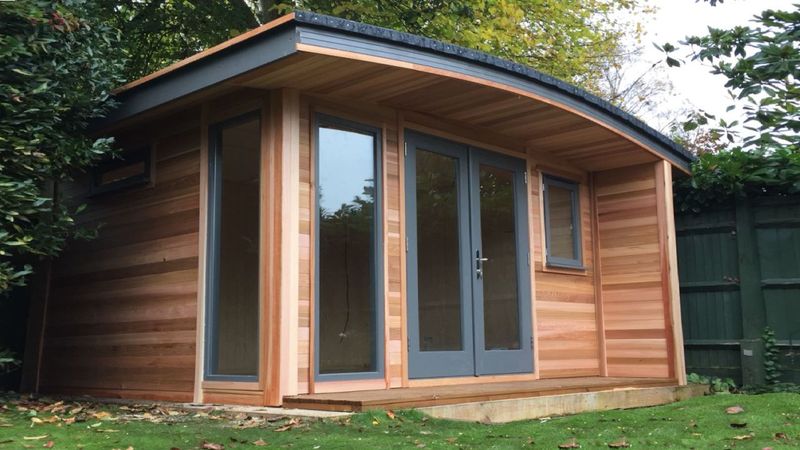

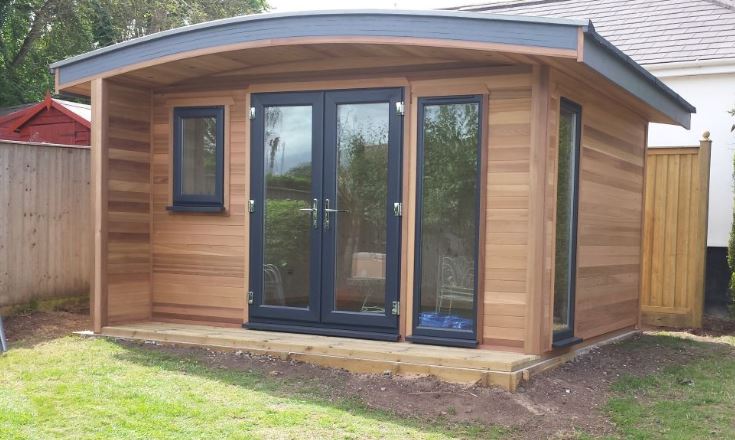

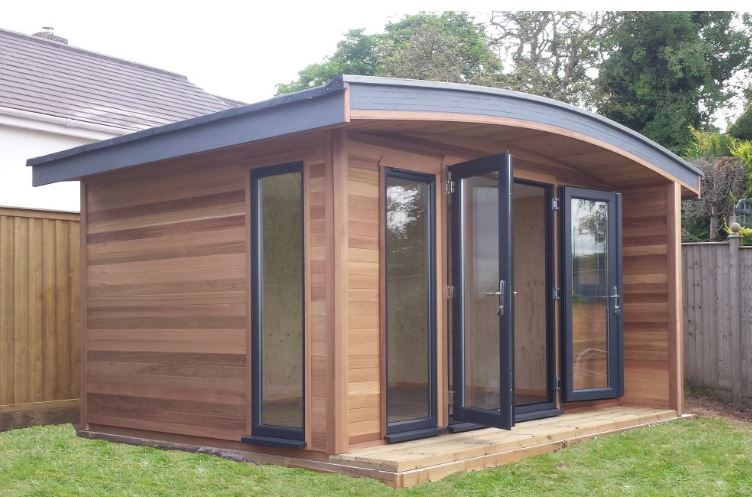

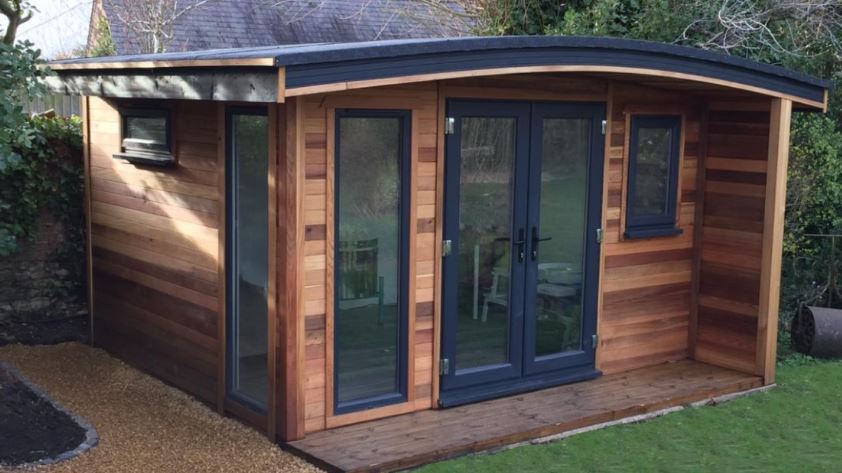

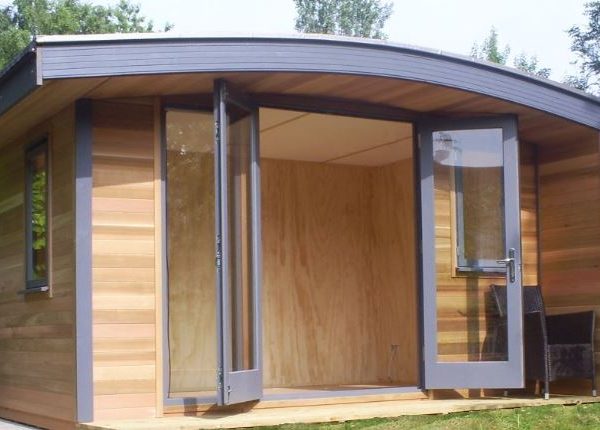

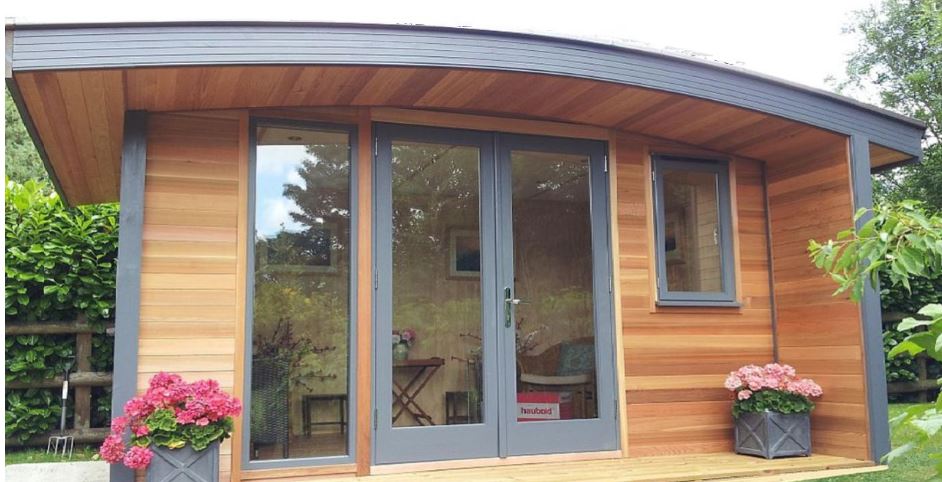

The Winchester Arched Roof Garden Offices and Garden Rooms
  • Arched Roof Garden Building – Inc. Delivery, Installation & VAT
  • Fully Insulated for all year round use
  • We have fully trained staff to install your garden building
  • 1500mm French Double Door in uPVC with 700mm covered porch & side wing
  • 2 x 600mm Side Screens in uPVC
  • 1 x Casement Window uPVC
  • Double glazing as standard, triple glazing available.
  • Cedar cladding as standard
  • Full electrics pack, 3 double sockets, spot lights, consumer unit & switch
  • Standard 2.5m height – (subject to local council requirements)

The Winchester Arched roof garden offices and garden rooms range are based on a modular design in sections of 1200mm and 600mm by 2134mm high. There are a range of standard buildings sizes which have a number of windows and doors and you can decide where you want to position them during the ordering process.

The standard Arched Roof Garden Office is supplied with one set of 1500mm uPVC French doors, two 600mm sided lights (full length) and a  600mm x 900mm  uPVC casement window, further windows can be added if required and are listed in the ‘Additional Options’ section below.

The Arched Roof Garden Office is manufactured with a beautiful arched roof which comes under the 2.5m roof height. In addition to this the building comes with 3 double sockets, spot lights, a consumer unit and switch. There are also a number of additional electrical options to add to the building if required.

The Arched Roof Garden Offices or Garden Rooms are constructed using 1 1/2″ x 3″ (38mm x 75mm) selected framing. The framework is built and clad with 12mm x 100mm Cedar cladding on the exterior, providing you with a 25 year plus rot resistant finish.

The interior is lined with 12mm brush grooved plywood, to provide a high quality and attractive finish, with cavity filled 50mm polystyrene insulation. Skirting and appropriate moldings are also fitted to provide a professional finish.

The floor has a 15mm plywood finish, and sits onto 1 1/2″ x 3″ (38mm x 75mm) tanalised floor joists with 75mm Celotex insulation underneath the plywood. A second level of tanalised bearers lifts the floor away from the concrete base to provide the necessary air flow beneath the building.

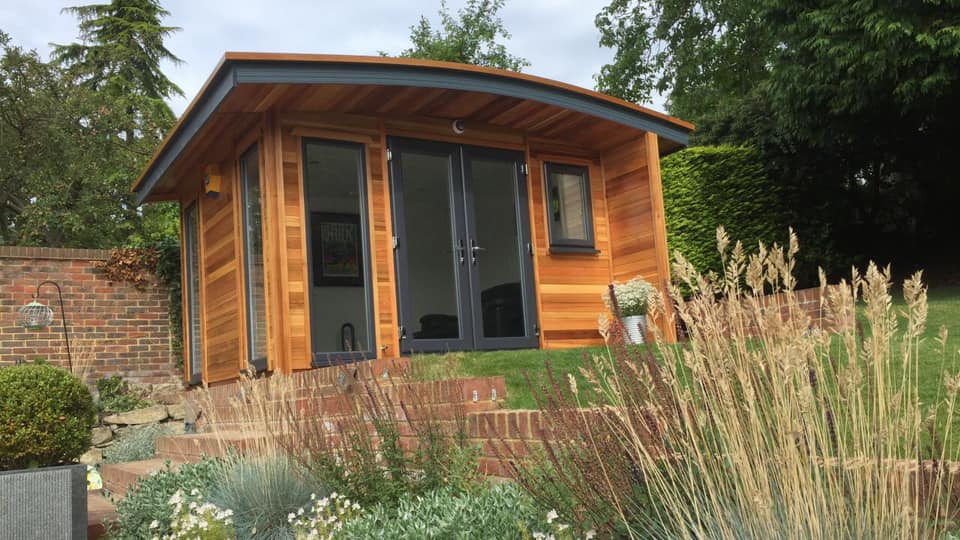

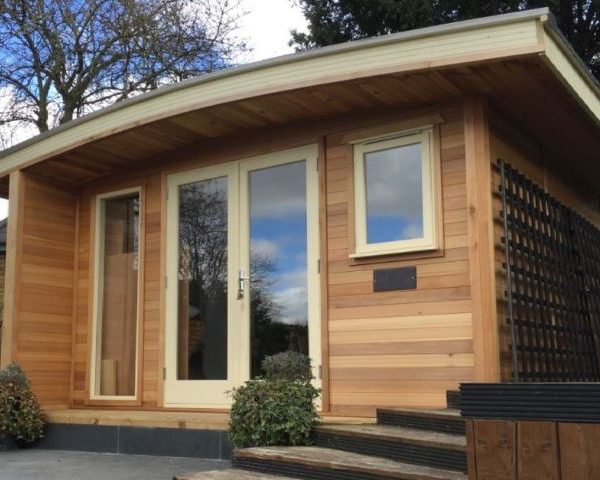

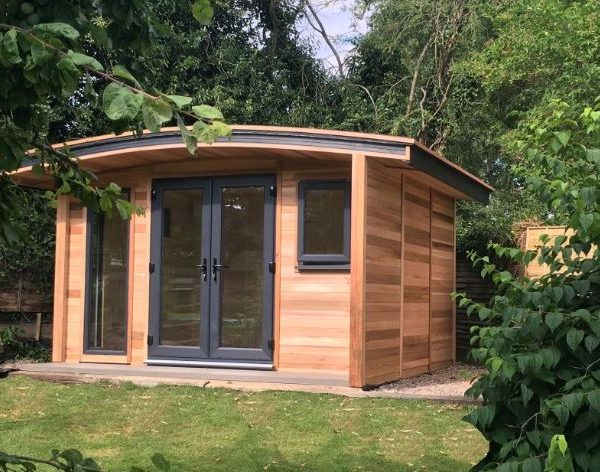

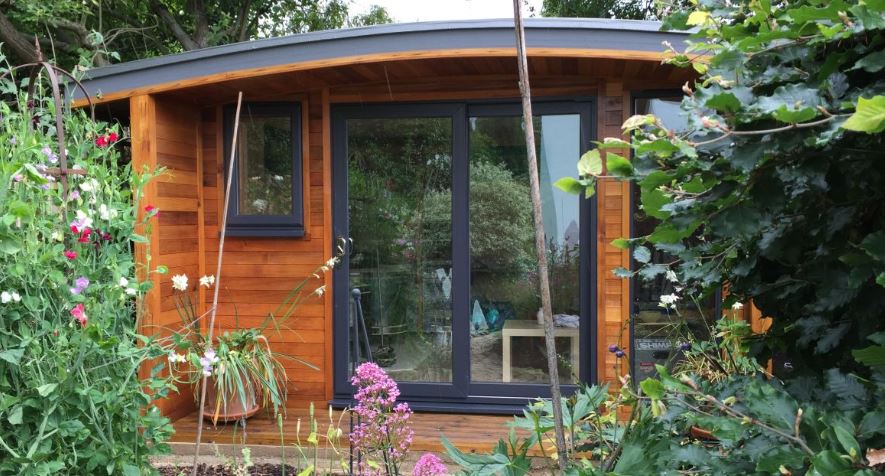

Arched Curved Roof
The Arched Curved Roof is popular when you want a contemporary look or you are looking for a garden building that is not too obtrusive in the garden.

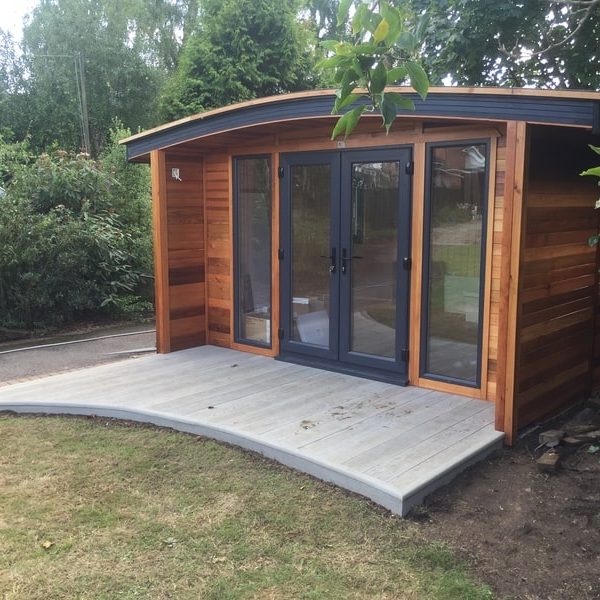

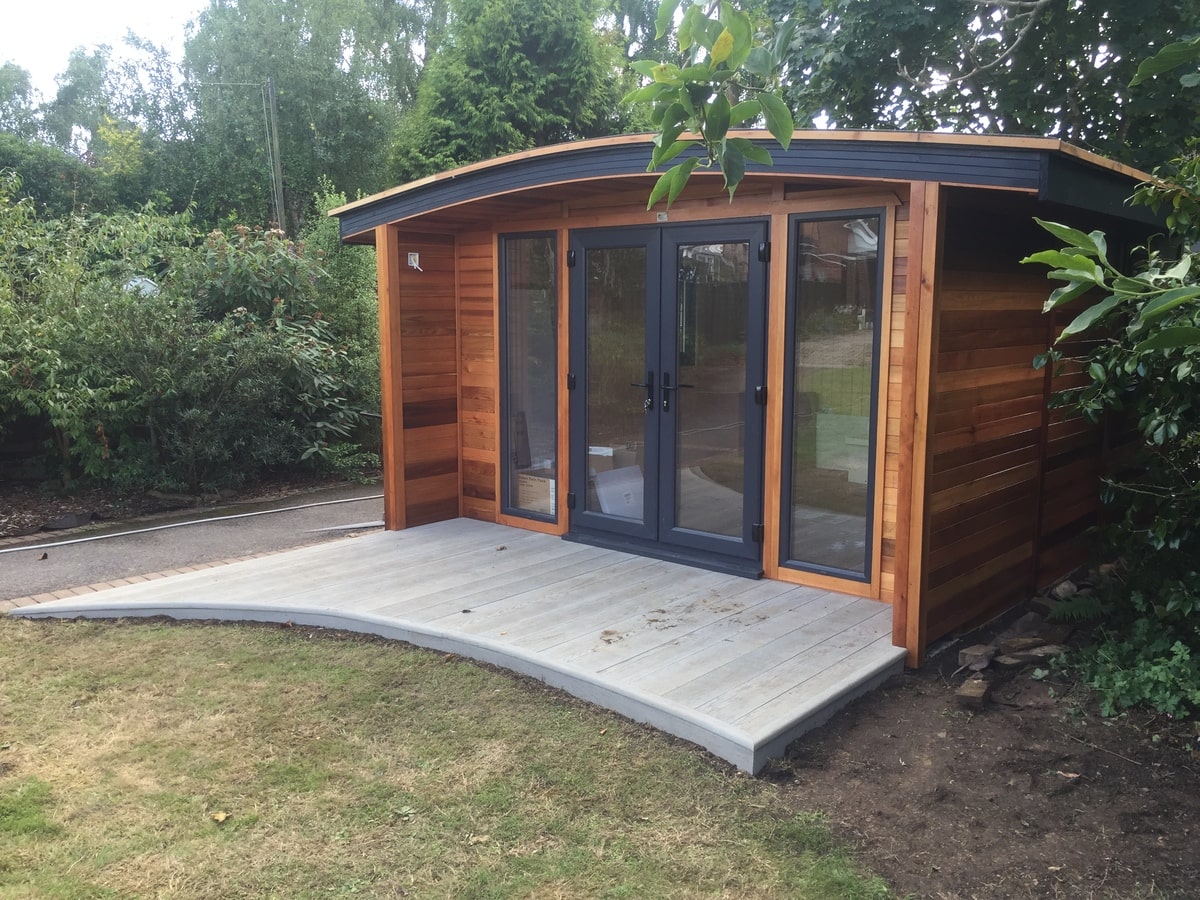

The Arched Curved Roof comes with a heavy duty polyester felt and large overhangs, 500mm to the sides and a 700mm overhang to the front which covers a decked area.

The Arched Roof Garden Office and Garden Room does not come with guttering as standard, that is why the side overhangs are 500mm to keep the rain away from the side walls.  If you do want guttering we can provide this at an additional cost.

The guttering and down pipes are supplied in either black or brown.

The lights, sockets, and wiring are all in place ready to be connected by a qualified electrician. Standard offices are complete with a consumer unit (with breakers), a light switch, lights (with bulbs & transformers), and sockets, although more can be purchased to suit your requirements.

Please note that all sockets and lights will need a qualified electrician to connect the wiring at both the consumer unit end, and the socket / light end to comply with the current regulations. In addition to this your electrician will also need to connect the electric feed from the external power source to your office.

  • External Clad –  10mm x 100mm Cedar cladding requiring no maintenance for 25 plus years.
  • Heavy Duty Floor – 75mm tantalised framing Celotex plus 15mm plywood floor with a 20mm airgap for air flow.
  • 5 Layer fully insulated and lined wall specification – Cedar cladding plus vapour barrier, splash back DPM skirt, 75mm framing with 50mm Celotex and 12mm seamless vertical grooved lining board.
  • Arched Roof – The Arched Roof Garden Office creates beautiful lines and comes with a heavy duty polyester grey felt roof covering.  The roof also has an under felt to ensure it is completely waterproof and will last for many years. The overhangs are 500mm to the side and 700mm to the front.
  • Ground Work – There are a range of options, Concrete base, timber base or existing hard standing.  For more information please click here or contact us for advice.

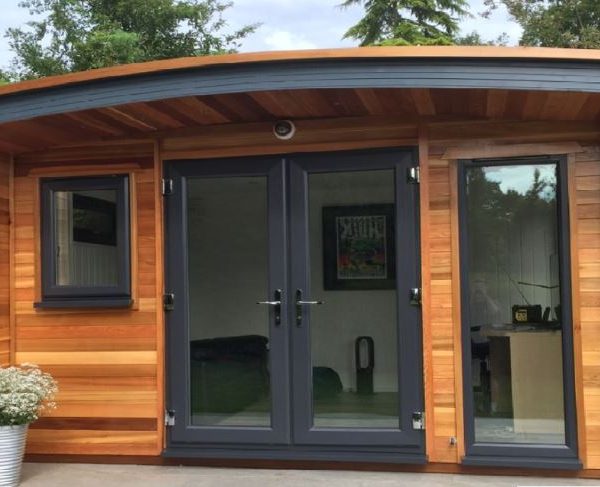

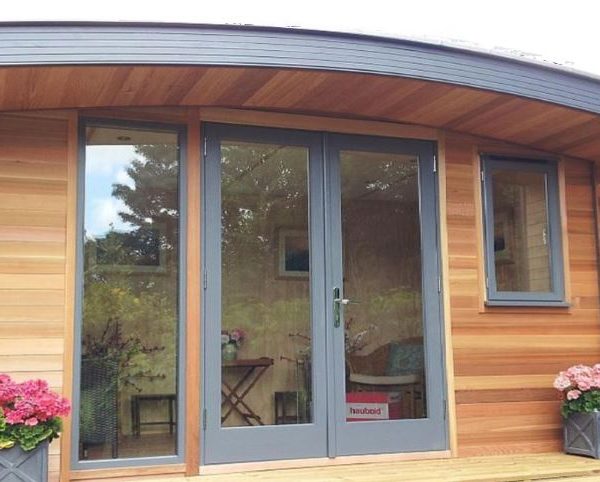

  • 1500mm Wide uPVC French Doors – The Arched Roof Garden Office has a set of uPVC doors available in Anthracite Grey, White, Black, Oak or Green.
  • 2 x uPVC 600mm Full Height Side Lights – These side lights can be positioned in a number of different positions to maximise your light or view. There are additional window and door sizes available and are listed below under ‘Additional Options’ below.
  • 1 x uPVC Casement Window – The standard size is 600mm x 900mm, again they come in a range of colours. There are additional window and door sizes available and are listed below under ‘Additional Options’ below.
  • Insurance recognised locking system to doors and windows – The doors have a multi-lock system and the windows have locking handles
  • Colour Options –  Anthracite grey.
  • Skirting and trims – Skirting is included to floor level and at eaves level.  Trims are included around the doors, windows and to the ceiling.
  • FSC Sustainable timber – All timber is from Scandinavian certified and sustainable forests
  • Vapour Barrier – The built in vapour barrier is an essential element of the structure to keep the damp out of the building.
  • Lighting – The building will be supplied with chrome GU10 down lights, the number will depend on the size of the building
  • Sockets and Consumer Unit – The sockets (3 double sockets) and light switch come with brushed chrome face plates.  The Consumer unit comes with two switches, 6amp for the lights and 16amp for the sockets.  It also has an RCD built into it.  Additional sockets are available if required.
  • Roof Overhangs – The Arched Roof Garden Office roof comes with 500mm  overhangs to the sides and 700mm to the front.
  • Guttering – All our garden offices and garden rooms come with either black or brown guttering and down pipes where appropriate.  The mono roof has guttering to the rear only and the pitched roof has it fitted to the front and rear
ARCHED ROOF GARDEN OFFICE & GARDEN ROOM OPTIONS INCLUDED ADDITIONAL
AS STD COST
ADDITIONAL EXTERNAL BUILDING OPTIONS
Cedar Clading YES NO
Front timber decking YES NO
Grey composite decking NO YES
Black or brown guttering / down pipes NO YES
ADDITIONAL INTERNAL BUILDING OPTIONS
Internal partitions NO YES
Internal Doors NO YES
15mm Standard ply floor YES NO
Laminate flooring – Harbour Oak YES NO
Laminate flooring – Harbour Oak Grey YES NO
Laminate flooring – White Washed Oak YES NO
Laminate flooring – Rift Oak YES NO
ADDITIONAL WINDOW & DOOR OPTIONS
Aluminium Bi-Folds NO YES
uPVC external Colours Free of charge – White inside as standard YES NO
Door furniture, black, white, brass or chrome – Free or charge YES NO
Additional cottage style uPCV 900mm x 1015mm casement windows NO YES
Additional 600mm uPVC wide side screen NO YES
Additional 1200mm uPVC wide side screen NO YES
Additional 610mm x 915mm uPVC casement windows NO YES
Additional 900mm x 400mm uPVC high level opening vent window NO YES
Additional 900mm x 900mm uPVC top opening picture window NO YES
Additional Double uPVC casement window NO YES
Additional uPVC Solid personnel door or half glazed door NO YES
Triple glazed up-grade NO YES
ADDITIONAL ELECTRICAL OPTIONS
External porch lights YES NO
LED light panels, spotlights can be swapped for a No of light panels YES NO
Additional light panels NO YES
Additional Sockets – 3 doubles supplied as standard NO YES
Up-Grade sockets to USB version NO YES

Garden Retreat can provide either Hire Purchase or Finance lease options and there is also a large amount of other funding resources available.

If you require planning information we are happy to advise and support, please click here for further information.

All prices include installation, VAT, the only additional cost would be delivery which is listed in the table below.

For further information please either complete the contact form below or call one of our team.

3.8m Wide x 3.0m Deep £14,950.00
3.8m Wide x 3.3m Deep £15,575.00
3.8m Wide x 3.6m Deep £16,125.00
Includes 700mm Overhang + Decking

All our buildings included delivery and installation although please contact us for delivery prices if you are located in Cornwall or Scotland.

All our buildings are installed buy our fully trained crews who have many years of experience.

Our installation crews will require clear access free from obstacles, trees, vegetation, overhead cables from the delivery vehicle to the site where the building will be erected.

They will also require 400mm clearance around the building to allow your building to be erected safely with clearance suitable for ladders and steps. If there is less than 400mm please contact us to discuss the options.

Sections can be as large as 3.0m x 2.4m hence we will need to know of any obstacles, bends or height restrictions before manufacture takes place.

Delivery & installation takes place on the same day via a 7.5 tonnes lorry – 28 feet long x 8ft wide.

A majority of buildings are installed within a single day, however larger garden offices, triple garages and commercial units will require more days on site. We will indicate the estimated assembly time at the time of order.

We will require a postcode for the site address and sufficient parking on the day of delivery to allow the installation crew to park as close to the site as possible.

Should your site be further than 30m from the parking location, please contact us prior to manufacture to ensure that we can deliver and install safely.

Please note that on some occasions we can take sections of buildings through the house but there is a surcharge to do so as the sections need to be made smaller and we require more staff on site to carry the sections through the house.

If you have any questions or queries concerning delivery and installation please do not hesitate to contact us.
