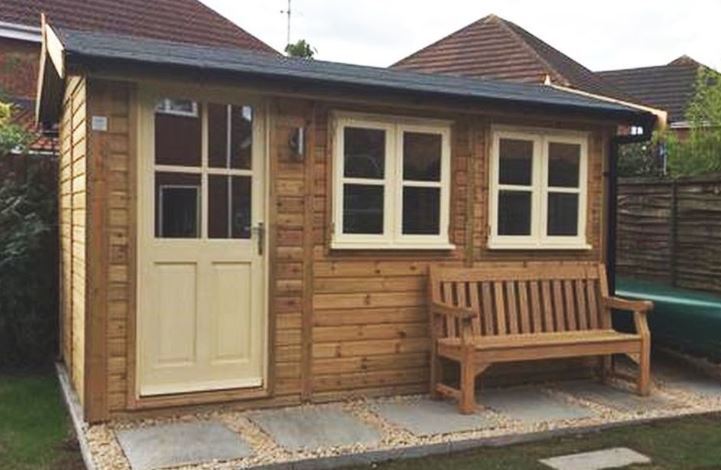

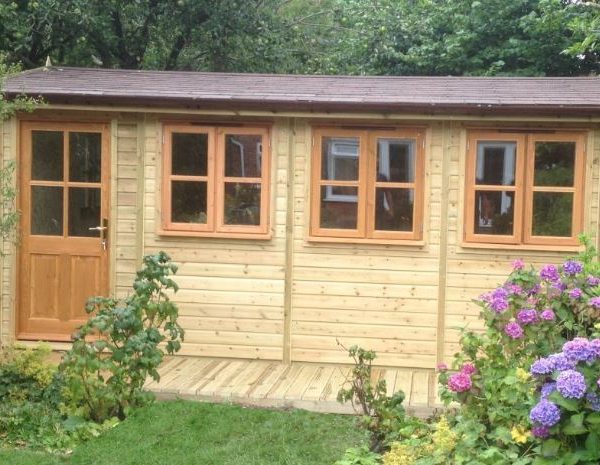

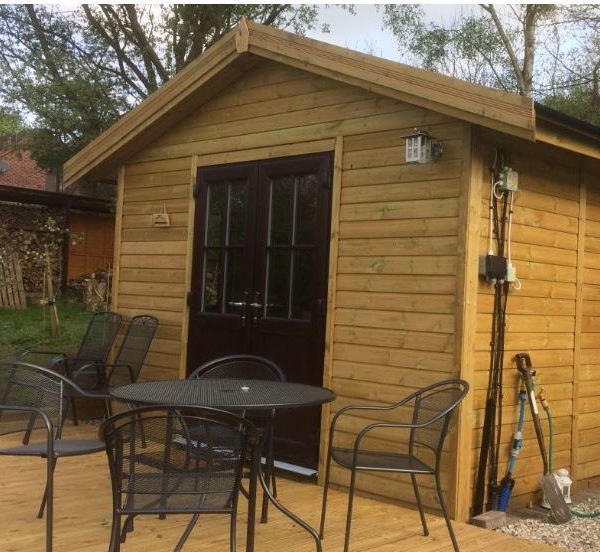

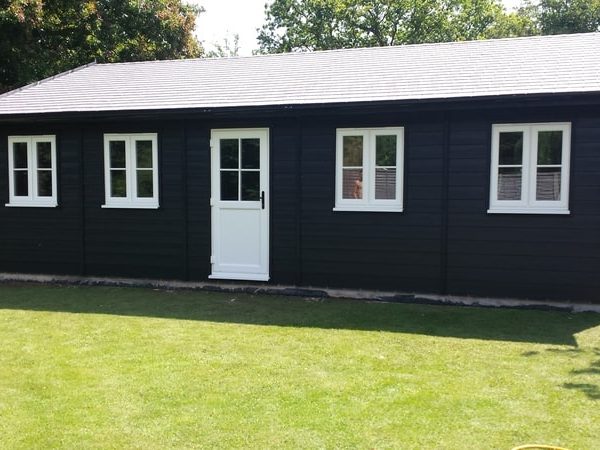

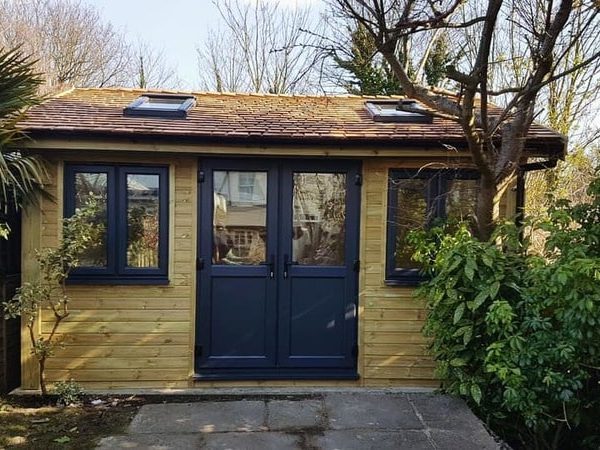

The Winchester Traditional Garden Offices and Garden Rooms
  • Traditional pitched roof Garden Building – Inc. Delivery, Installation & VAT
  • Fully Insulated for all year round use
  • We have fully trained staff to install your garden building
  • Single door half glazed, either timber or uPVC in a choice of colours
  • 2 x Cottage casement windows in timber or uPVC windows included
  • Double glazing as standard, triple glazing available.
  • Choice of cladding including cedar and feather edge
  • Full electrics pack, 3 double sockets, spot lights, consumer unit & switch
  • 2.5m height available – (subject to local council requirements)

The Winchester Traditional range of garden offices and garden rooms are based on a modular design in sections of 1200mm and 600mm by 2134mm high. There are a range of standard buildings sizes which have a number of windows and doors and you can decide where you want to position them during the ordering process.

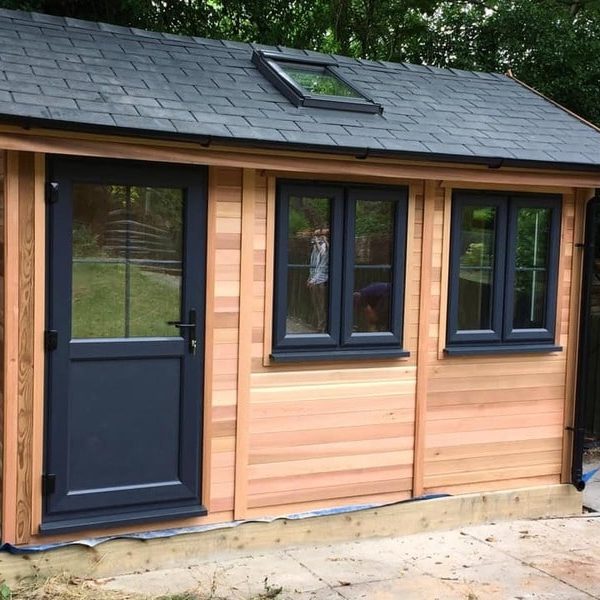

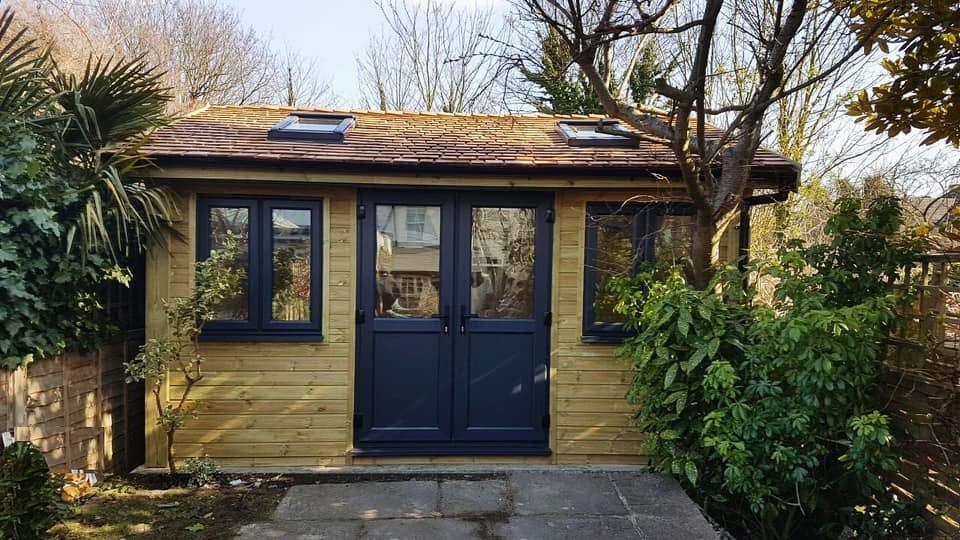

The standard Traditional Garden Office is supplied with one uPVC half double glazed door and two uPVC cottage style casement windows, further windows can be added if required and are listed in the ‘Additional Options’ section below.

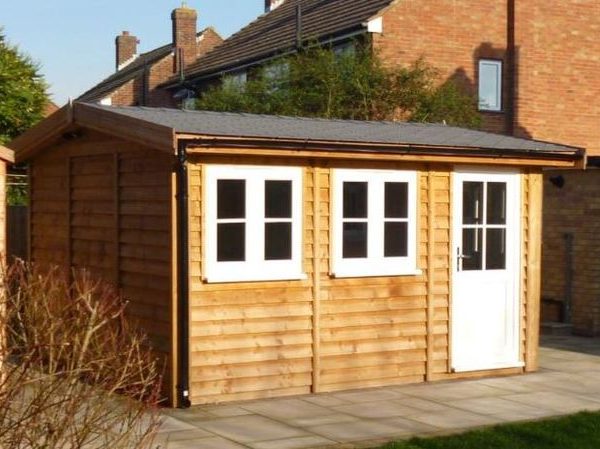

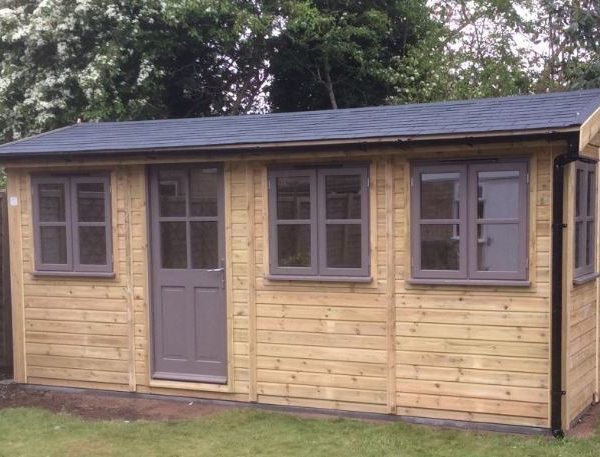

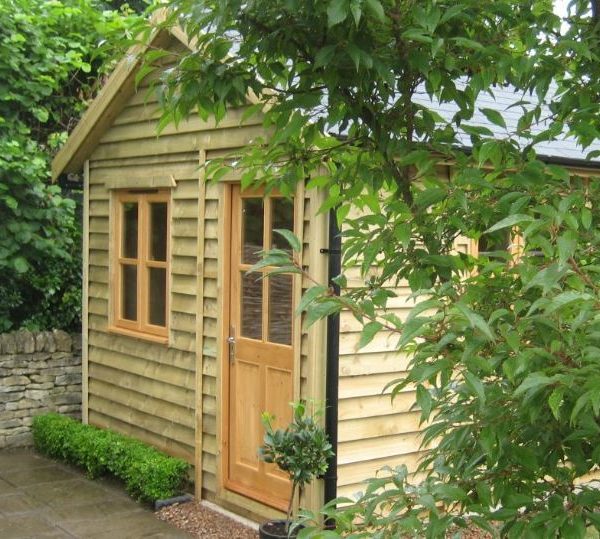

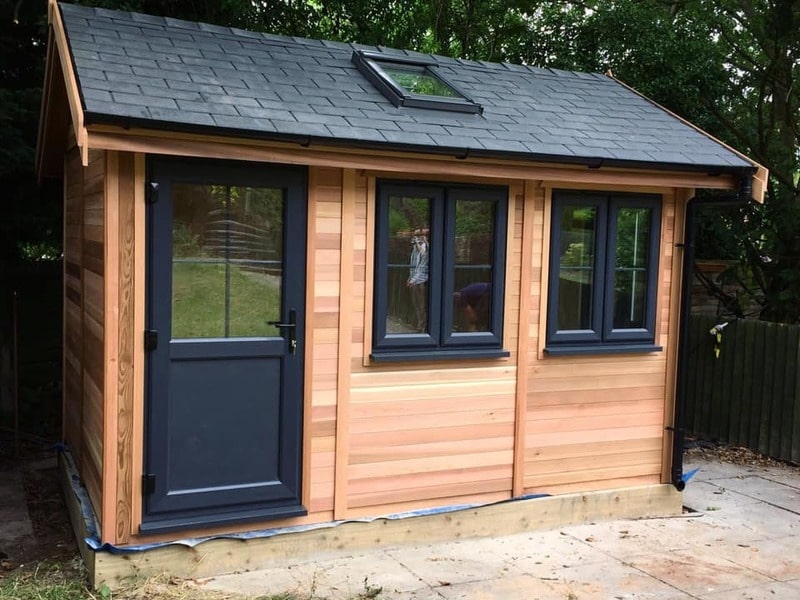

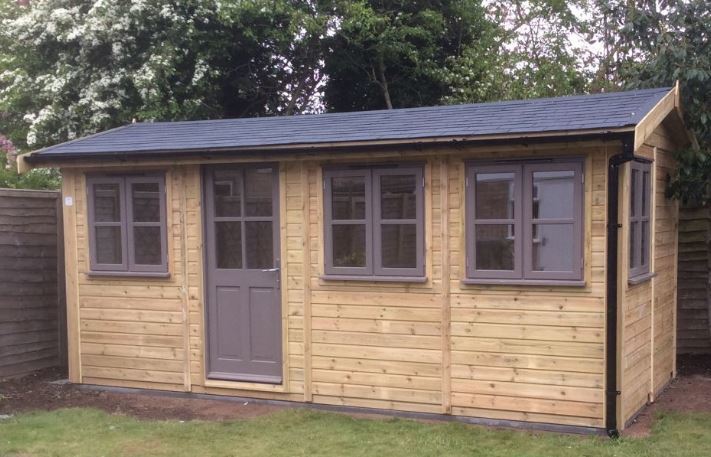

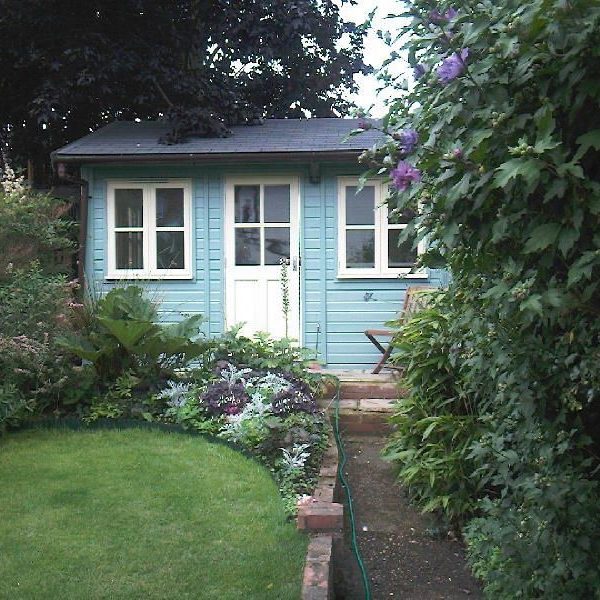

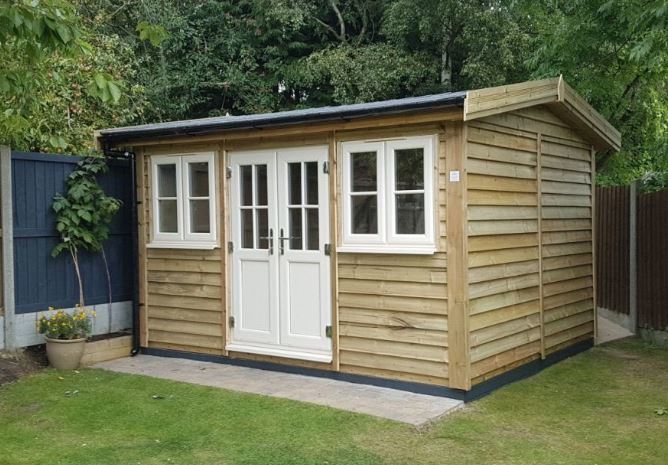

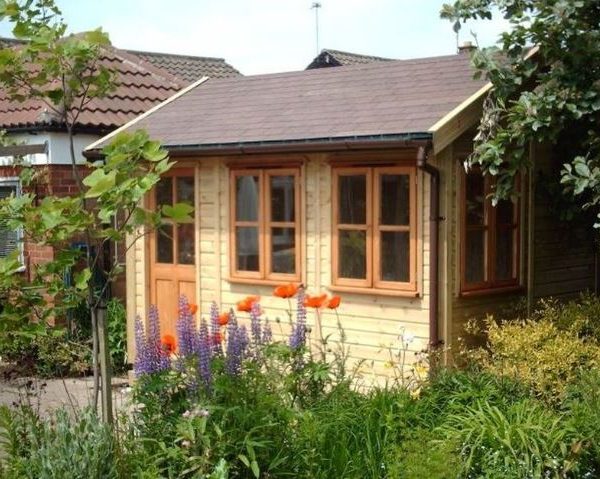

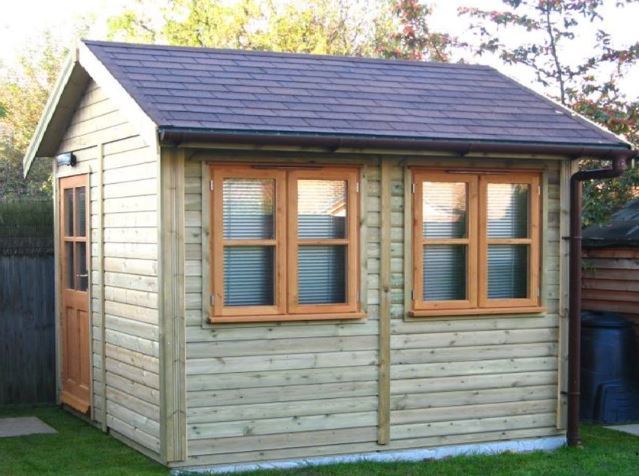

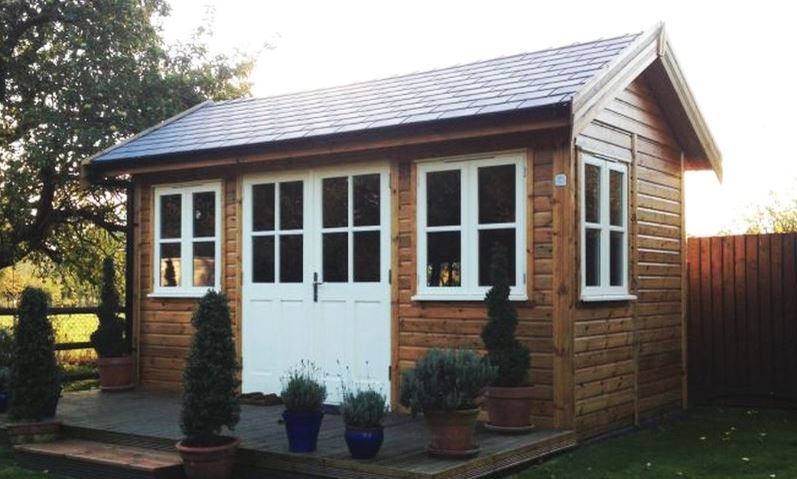

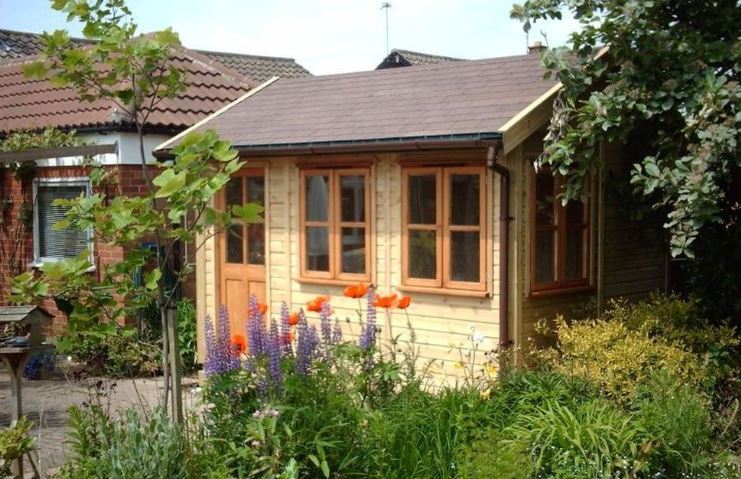

The Traditional Garden Office is manufactured with a pitched roof and comes with either slate grey or red/brown felt tiles. The ridge height is around 2.8m depending on the size of the building. You can reduce the ridge height to 2.5m to stay within planning rules if required. In addition to this the building comes with 3 double sockets, spot lights, a consumer unit and switch. There are also a number of additional electrical options to add to the building if required.

If the standard sizes are not suitable we can manufacture the offices to suit the size you require. If you have any queries please do not hesitate to contact us.

The Traditional Garden Offices or Garden Rooms are constructed using 1 1/2″ x 3″ (38mm x 75mm) selected framing. The framework is built and clad with 16mm nominal x 125mm tanalised shiplap cladding on the exterior, providing you with a 25 year rot resistant finish.

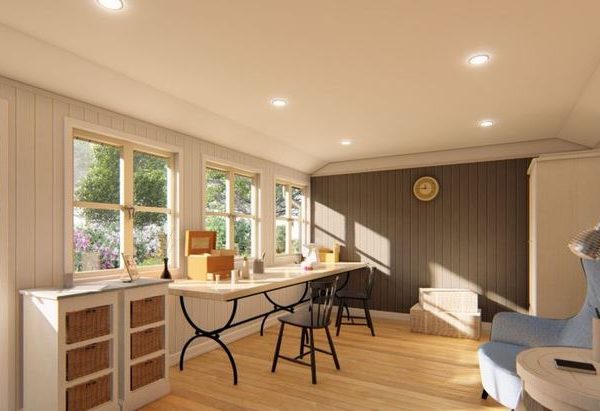

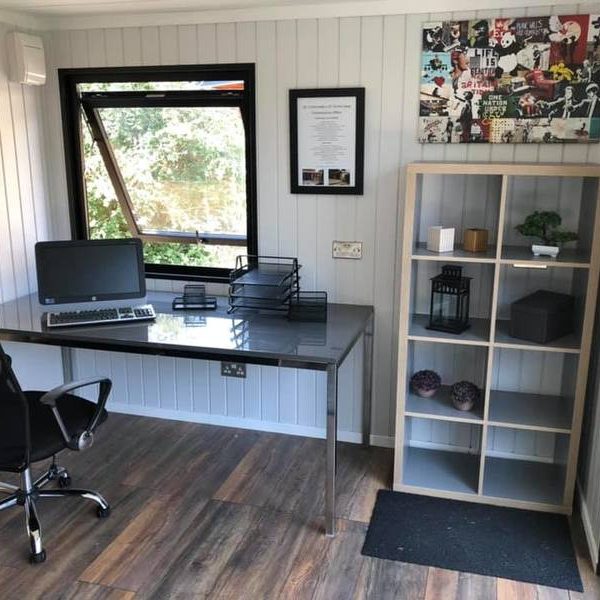

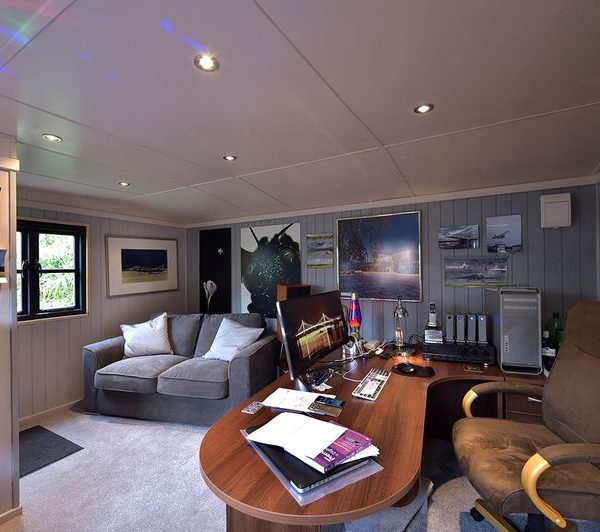

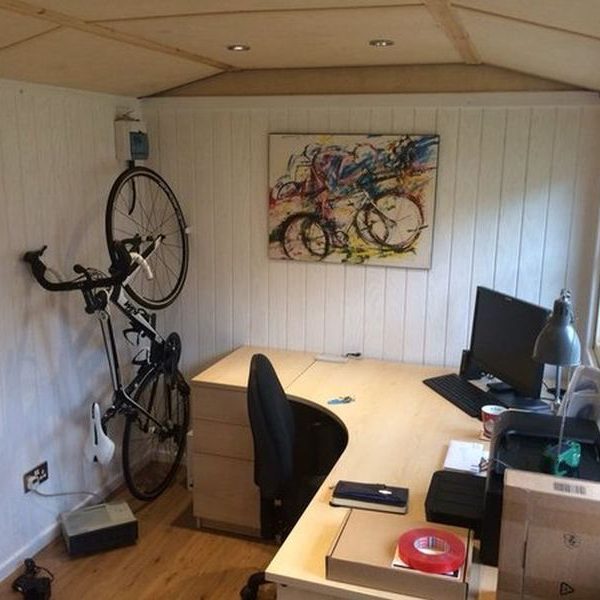

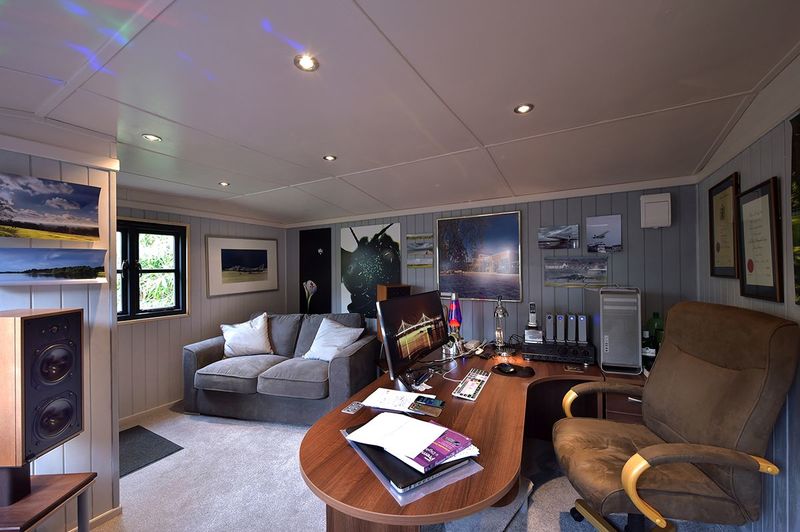

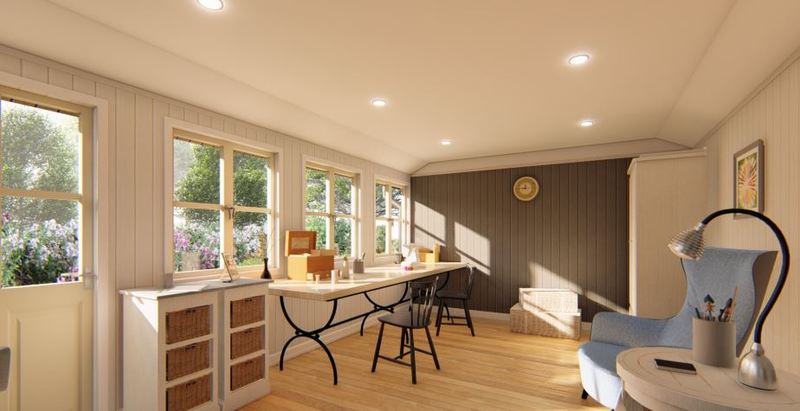

The interior is lined with 12mm brush grooved plywood, to provide a high quality and attractive finish, with cavity filled 50mm polystyrene insulation. Skirting and appropriate moldings are also fitted to provide a professional finish.

The floor has a 12mm plywood finish, and sits onto 1 1/2″ x 3″ (38mm x 75mm) tanalised floor joists with 75mm Celotex insulation underneath the plywood. A second level of tanalised bearers lifts the floor away from the concrete base to provide the necessary air flow beneath the building.

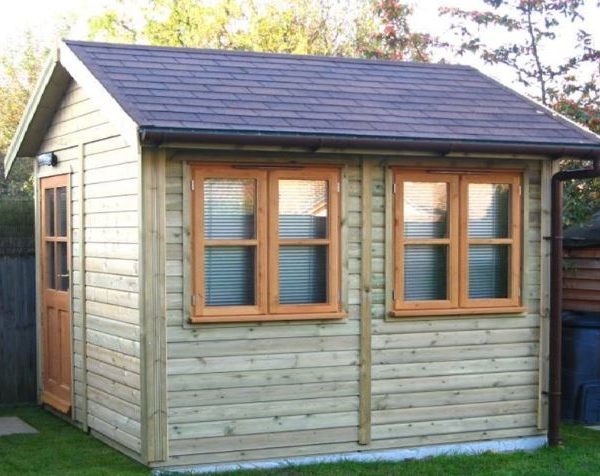

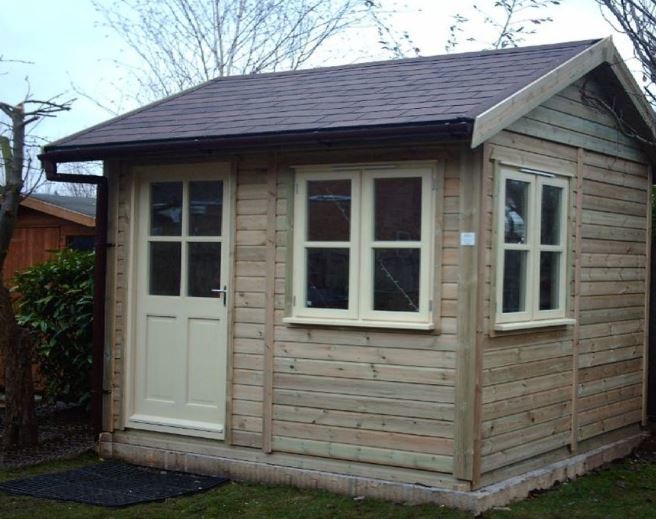

Pitched Roof
The pitched roof version is specially designed to provide maximum head room, with a clear span between each gable end wall. The inside of the roof is lined with 9mm plywood, and the outside of the roof has 12mm sterling board and 50mm polystyrene insulation fills the cavity.

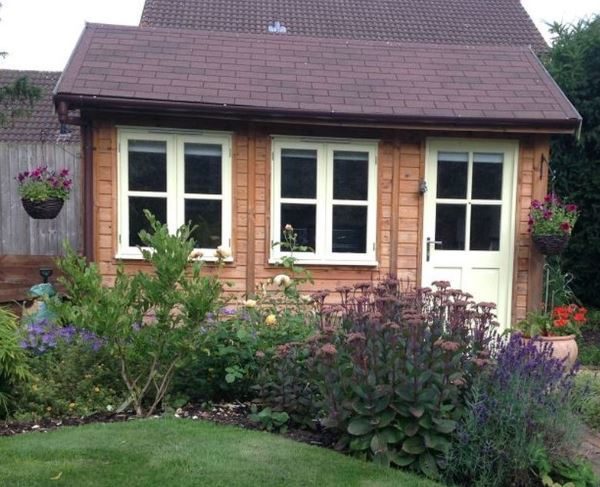

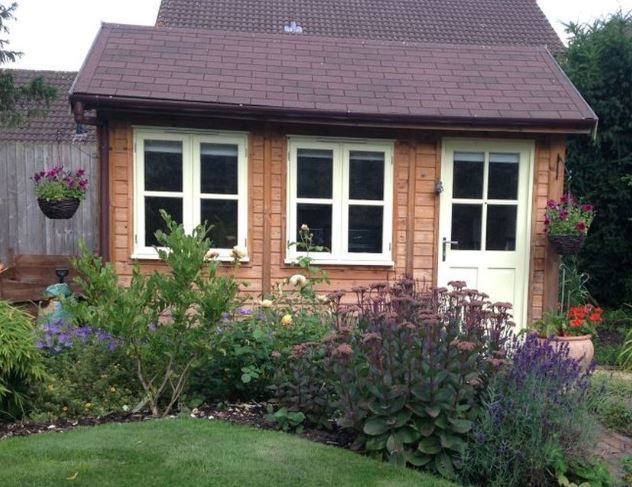

Felt tiles are also fitted to the pitched roof of the office on top of an underlay felt to provide both a long lifespan and an attractive finish. The felt tiles are available in either Red/Brown (Clay effect) or Slate Grey.

The pitched roof ridge height, depending on the building size, is between 2.8m and 3.2m high as an average height. On smaller buildings we can drop the ridge height down to accommodate a 2.5m maximum height which will satisfy UK planning rules. If you need further advice on planning please call us for advice, or click here planning portal.

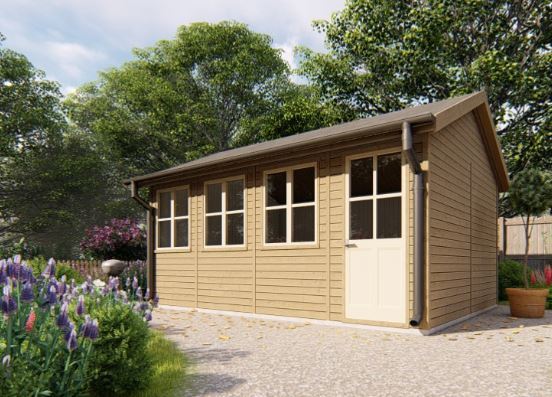

Guttering and down pipes are supplied and fitted as standard to the front & back of the pitched roof. Please note the roof overhangs the walls of the buildings by 6″ (150mm) at the gable ends, and 1′ (300mm) to the front and the back – this is in addition to the size of the building. We can however adjust the overhang sizes in the event of space restrictions.

The mono roof design has guttering to the rear only, or to just one side depending on the slope of the roof.

The guttering and down pipes are supplied in either black or brown.

The lights, sockets, and wiring are all in place ready to be connected by a qualified electrician. Standard offices are complete with a consumer unit (with breakers), a light switch, lights (with bulbs & transformers), and sockets, although more can be purchased to suit your requirements.

Please note that all sockets and lights will need a qualified electrician to connect the wiring at both the consumer unit end, and the socket / light end to comply with the current regulations. In addition to this your electrician will also need to connect the electric feed from the external power source to your office.

  • External Clad –  16mm x 125mm tanalised ship lap cladding requiring no maintenance for 25 years.
  • Heavy Duty Floor – 75mm tantalised framing Celotex plus 15mm plywood floor with a 20mm airgap for air flow.
  • 5 Layer fully insulated and lined wall specification – Tanalised shiplap cladding plus vapour barrier, splash back DPM skirt, 75mm framing with 50mm Celotex and 12mm seamless vertical grooved lining board.
  • Pitched Roof –The pitched roof comes with either slate grey or red / brown felt tiles including underfelt.
  • Ground Work – There are a range of options, Concrete base, timber base or existing hard standing.  For more information please click here or contact us for advice.
  • Single Half Double Glazed uPVC Door – The Traditional Garden Office door comes in a range of colours, Anthracite Grey, White, Black, Oak or Green.
  • 2 x uPVC Cottage Style Casement Windows – The standard size is 915mm x 1050mm, again they come in Anthracite Grey, White, Black, Oak or Green. There are additional window and door sizes available and are listed below under ‘Additional Options’ below.
  • Insurance recognised locking system to doors and windows – The doors have a multi-lock system and the windows have locking handles
  • Colour Options –  Anthracite Grey, White, Black, Oak or Green.
  • Skirting and trims – Skirting is included to floor level and at eaves level.  Trims are included around the doors, windows and to the ceiling.
  • FSC Sustainable timber – All timber is from Scandinavian certified and sustainable forests
  • Vapour Barrier – The built in vapour barrier is an essential element of the structure to keep the damp out of the building.
  • Lighting – The building will be supplied with chrome GU10 down lights, the number will depend on the size of the building
  • Sockets and Consumer Unit – The sockets (3 double sockets) and light switch come with brushed chrome face plates.  The Consumer unit comes with two switches, 6amp for the lights and 16amp for the sockets.  It also has an RCD built into it.  Additional sockets are available if required.
  • Roof Overhangs – The Traditional garden office roof comes with 300mm overhangs to the front and rear and 150mm overhang to the gable ends.
  • Guttering – All our garden offices and garden rooms come with either black or brown guttering and down pipes where appropriate to the front and rear.
Increase in height of building from 2.5m to 3.0m NO YES
Cedar Cladding YES NO
Feather edge Cladding NO YES
Front timber decking YES NO
Grey composite decking NO YES
Black or brown guttering / down pipes YES NO
Slate grey felt tiles with underfelt YES NO
Red / Brown felt tiles with underfelt YES NO

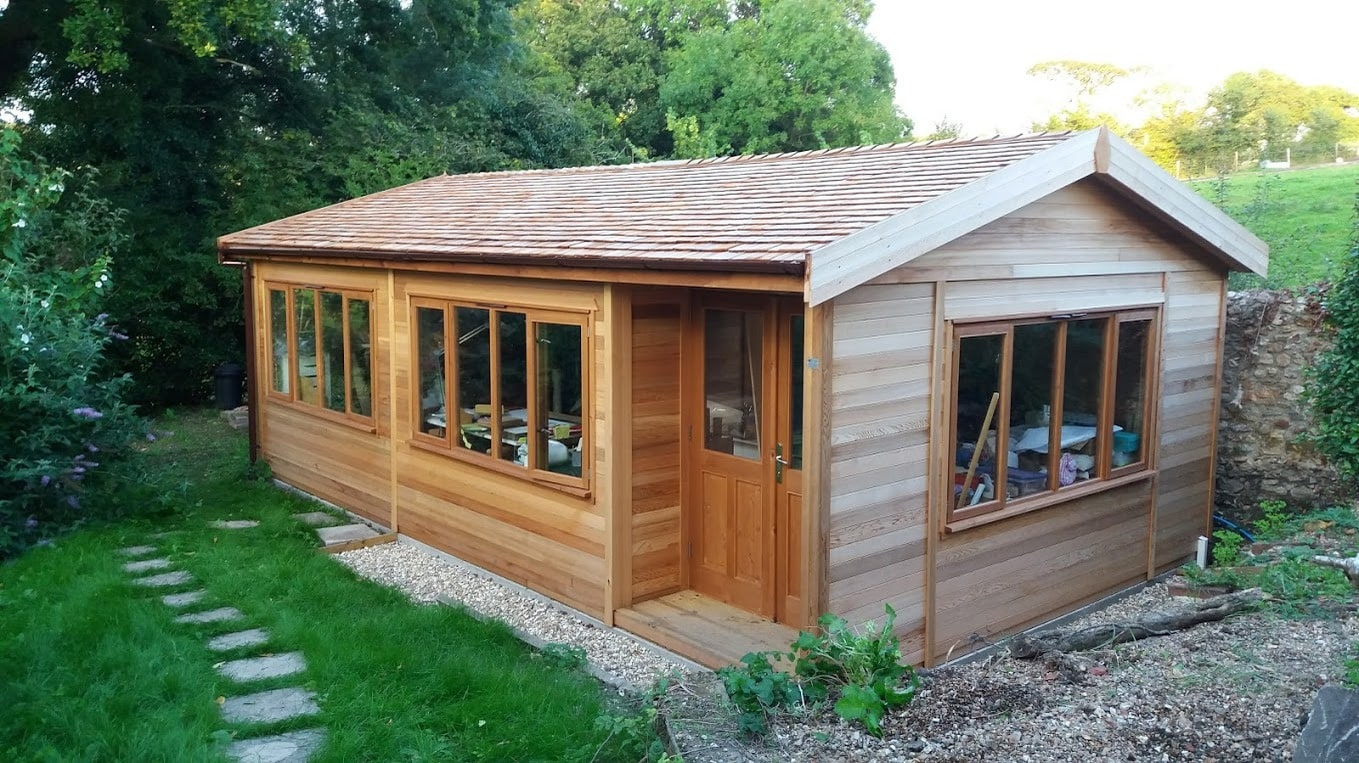

Cedar shingles with underfelt NO YES
Tapco slate with underfelt NO YES
Internal partitions NO YES
Internal Doors NO YES
15mm Standard ply floor YES NO
Laminate flooring – Harbour Oak YES NO
Laminate flooring – Harbour Oak Grey YES NO
Laminate flooring – White Washed Oak YES NO
Laminate flooring – Rift Oak YES NO
Aluminium Bi-Folds NO YES
uPVC external Colours Free of charge – White inside as standard YES NO
Door furniture, black, white, brass or chrome – Free or charge YES NO
Additional cottage style uPCV 900mm x 1015mm casement windows NO YES
Additional 600mm uPVC wide side screen NO YES
Additional 1200mm uPVC wide side screen NO YES
Additional 610mm x 915mm uPVC casement windows NO YES
Additional 900mm x 400mm uPVC high level opening vent window NO YES
Additional 900mm x 900mm uPVC top opening picture window NO YES
Additional Double uPVC casement window NO YES
Additional uPVC Solid personnel door or half glazed door NO YES
Triple glazed up-grade NO YES
External porch lights NO YES
LED light panels, spotlights can be swapped for a No of light panels YES NO
Additional light panels NO YES
Additional Sockets – 3 doubles supplied as standard NO YES
Up-Grade sockets to USB version NO YES

Garden Retreat can provide either Hire Purchase or Finance lease options and there is also a large amount of other funding resources available.

If you require planning information we are happy to advise and support, please click here for further information.

All prices include installation, VAT, the only additional cost would be delivery which is listed in the table below.

For further information please either complete the contact form below or call one of our team.

2.6m Wide x 2.4m Deep £11,725.00
2.6m Wide x 3.0m Deep £12,825.00
2.6m Wide x 3.6m Deep £13,925.00
2.6m Wide x 4.2m Deep £15,025.00
3.2m Wide x 2.4m Deep £12,825.00
3.2m Wide x 3.0m Deep £13,925.00
3.2m Wide x 3.6m Deep £15,025.00
3.2m Wide x 4.2m Deep £16,125.00
3.8m Wide x 2.4m Deep £13,925.00
3.8m Wide x 3.0m Deep £15,025.00
3.8m Wide x 3.6m Deep £16,125.00
3.8m Wide x 4.2m Deep £17,225.00
4.4m Wide x 2.4m Deep £15,025.00
4.4m Wide x 3.0m Deep £16,125.00
4.4m Wide x 3.6m Deep £17,225.00
4.4m Wide x 4.2m Deep £18,325.00
5.0m Wide x 2.4m Deep £16,125.00
5.0m Wide x 3.0m Deep £17,225.00
5.0m Wide x 3.6m Deep £18,325.00
5.0m Wide x 4.2m Deep £19,425.00
5.6m Wide x 2.4m Deep £17,225.00
5.6m Wide x 3.0m Deep £18,325.00
5.6m Wide x 3.6m Deep £19,425.00
5.6m Wide x 4.2m Deep £20,525.00
6.2m Wide x 2.4m Deep £18,325.00
6.2m Wide x 3.0m Deep £19,425.00
6.2m Wide x 3.6m Deep £20,525.00
6.2m Wide x 4.2m Deep £21,625.00

All our buildings included delivery and installation although please contact us for delivery prices if you are located in Cornwall or Scotland.

All our buildings are installed buy our fully trained crews who have many years of experience.

Our installation crews will require clear access free from obstacles, trees, vegetation, overhead cables from the delivery vehicle to the site where the building will be erected.

They will also require 400mm clearance around the building to allow your building to be erected safely with clearance suitable for ladders and steps. If there is less than 400mm please contact us to discuss the options.

Sections can be as large as 3.0m x 2.4m hence we will need to know of any obstacles, bends or height restrictions before manufacture takes place.

Delivery & installation takes place on the same day via a 7.5 tonnes lorry – 28 feet long x 8ft wide.

A majority of buildings are installed within a single day, however larger garden offices, triple garages and commercial units will require more days on site. We will indicate the estimated assembly time at the time of order.

We will require a postcode for the site address and sufficient parking on the day of delivery to allow the installation crew to park as close to the site as possible.

Should your site be further than 30m from the parking location, please contact us prior to manufacture to ensure that we can deliver and install safely.

Please note that on some occasions we can take sections of buildings through the house but there is a surcharge to do so as the sections need to be made smaller and we require more staff on site to carry the sections through the house.

If you have any questions or queries concerning delivery and installation please do not hesitate to contact us.
